BWSENSING High cost performance CAN bus Attitude and Heading Reference System AH325
BWSENSING High cost performance CAN bus Attitude and Heading Reference System AH325

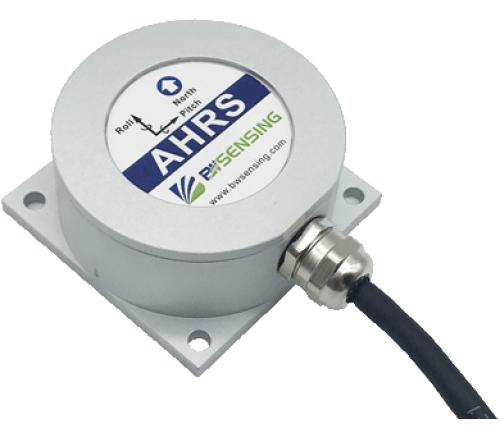

AH325 BWSENSING High cost performance CAN bus Attitude and Heading Reference System AH325 Product Introduction:

AH325 Attitude and Heading Reference System (AHRS) is a high performance, low cost inertial measurement device that measures the attitude parameters (roll and pitch), angular velocity, acceleration information and heading angle of the dynamic carrie

Shared:

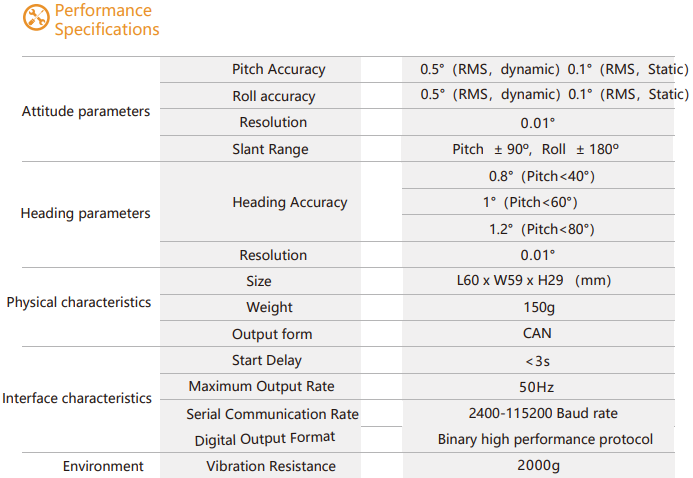

Technical Specifications
1522039676218109.png Pitch/Roll Accuracy

1522039676218109.png Heading Accuracy

0.5°(RMS,dynamic)0.1°(RMS,Static0.8°(Pitch<40°);  1°(Pitch<60°);  1.2°(Pitch<80°)


1555031937151820.png Resolution1555032026805259.png Output form
0.01°CAN


1554703849396618.png Start Delay1554703849396618.png Maximum Output Rate
<3s50Hz
Product Advantages
1522039676218109.png Pitch/Roll Accuracy

1522039676218109.png Heading Accuracy

0.5°(RMS,dynamic)0.1°(RMS,Static0.8°(Pitch<40°);  1°(Pitch<60°);  1.2°(Pitch<80°)


1555031937151820.png Resolution1555032026805259.png Output form
0.01°CAN


1554703849396618.png Start Delay1554703849396618.png Maximum Output Rate
<3s50Hz
