Measurement axis

X-Y

Accuracy (°)

Highest

0.02

Resolution (°)

Completely still

0.001

Zero bias (°/℃)

-40~85℃

±0.008

Start-up time

＜3s

Output frequency (Hz)

5-100Hz adjustable

Up to 100

Mean time between failures MTBF

≥90000 h

Electromagnetic compatibility

According to GBT17626

Insulation resistance

≥100 MΩ

Impact resistance

2000g，0.5ms，3 times/axis

Protection level

IP67

Shell material

Magnesium aluminum alloy oxidation

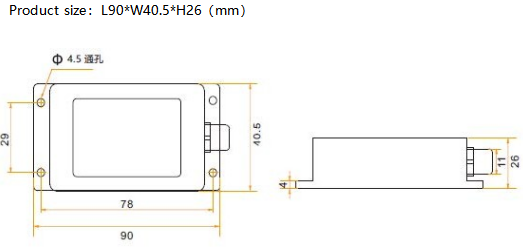

Installation

Four M4 screws
