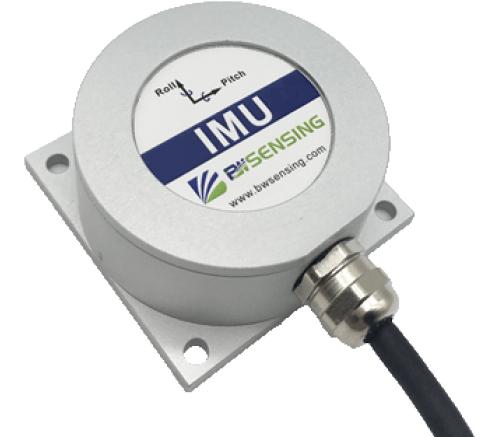

High-cost-effective Inertial Measurement Unit IMU300
High-cost-effective Inertial Measurement Unit IMU300
IMU300 High-cost-effective Inertial Measurement Unit IMU300 Product Introduction:

The BW-IMU300 is a high-performance inertial measurement device, which can measure the attitude parameters (roll angle, pitch angle, angular velocity, acceleration) of the movement carrier. The deviations of attitude and angular velocity are optimally

Shared:

Technical Specifications

Accuracy: 0.5°

Resolution: 0.01°

Tilt margin: Pitch ±90º, Roll ±180º

Supply Voltage: 9-35V DC

Zero instability: 40 °/h

Bias stability: ±2 mg

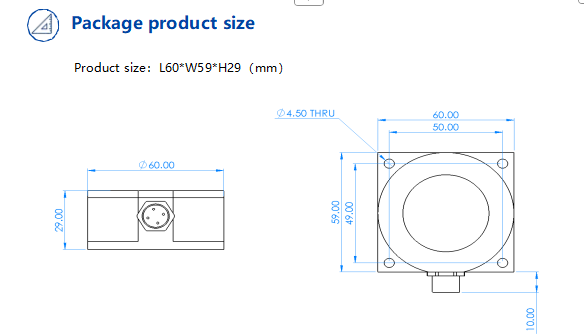

Dimension: L60 x W59 x H29(mm)

Vibration resistance: 2000g

Broad temperature range: -40℃~+85℃

Waterproof level: IP67

RS232/485/TTL interface output optional

Dynamic compensation, orthogonal compensation

If garbled characters appear on this manual when you preview online, please download it. This problem could be solved. We recommend Adobe Acrobat Reader DC. If still cannot, please contact us (sales@bwsensing.com), we will send you the newest manual via email. Thank you for your understanding.

Product Advantages

Accuracy: 0.5°

Resolution: 0.01°

Tilt margin: Pitch ±90º, Roll ±180º

Supply Voltage: 9-35V DC

Zero instability: 40 °/h

Bias stability: ±2 mg

Dimension: L60 x W59 x H29(mm)

Vibration resistance: 2000g

Broad temperature range: -40℃~+85℃

Waterproof level: IP67

RS232/485/TTL interface output optional

Dynamic compensation, orthogonal compensation
