Fiber optic gyro Inertial Measurement Unit IMU1200
Fiber optic gyro Inertial Measurement Unit IMU1200

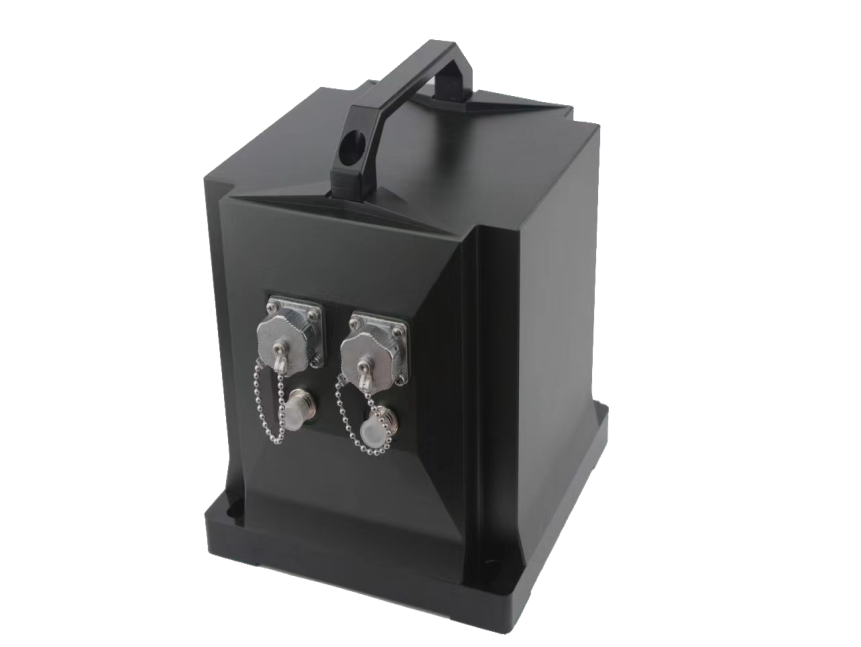

IMU1200 Fiber optic gyro Inertial Measurement Unit IMU1200 Product Introduction:

BW-IMU1200 is a fiber optic gyro inertial measurement unit with high reliability,which can measure the angular velocity and acceleration velocity of the moving carrier. The acceleration and angular velocity deviations are estimated by a 6-state Kalman

Shared:

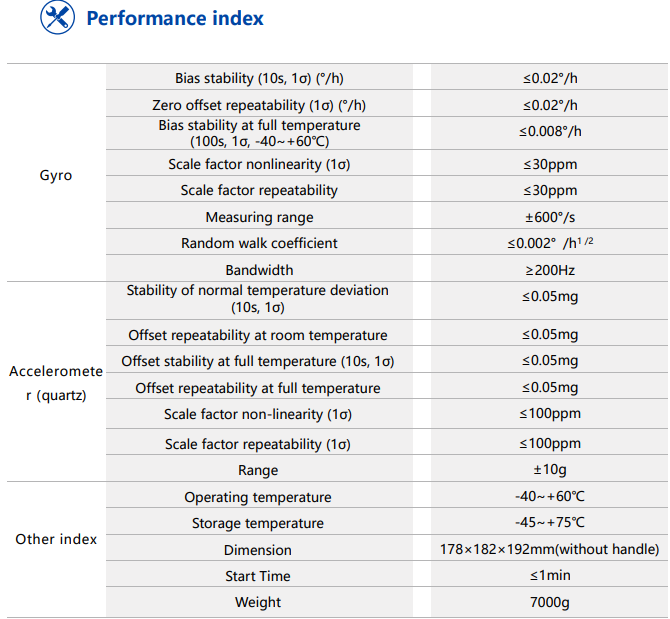

Technical Specifications

Bias stability (10s, 1σ) (°/h): ≤0.02°/h

Zero offset repeatability (1σ) (°/h): ≤0.02°/h

Scale factor nonlinearity (1σ): ≤30ppm

Scale factor repeatability: ≤30ppm

Gyro measurement range: ±600°/s

Random walk coefficient: ≤0.002° /h1 /2

Accelerometer (quartz) range: ±10g

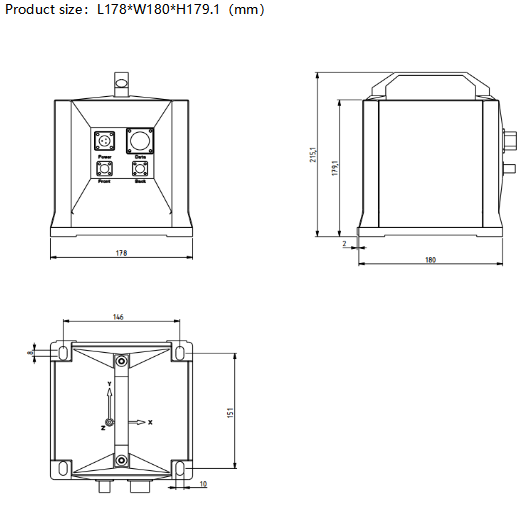

Dimension: 178× 182×192mm(without handle)


Product Advantages
