Fiber optic gyro Inertial Measurement Unit IMU800
Fiber optic gyro Inertial Measurement Unit IMU800

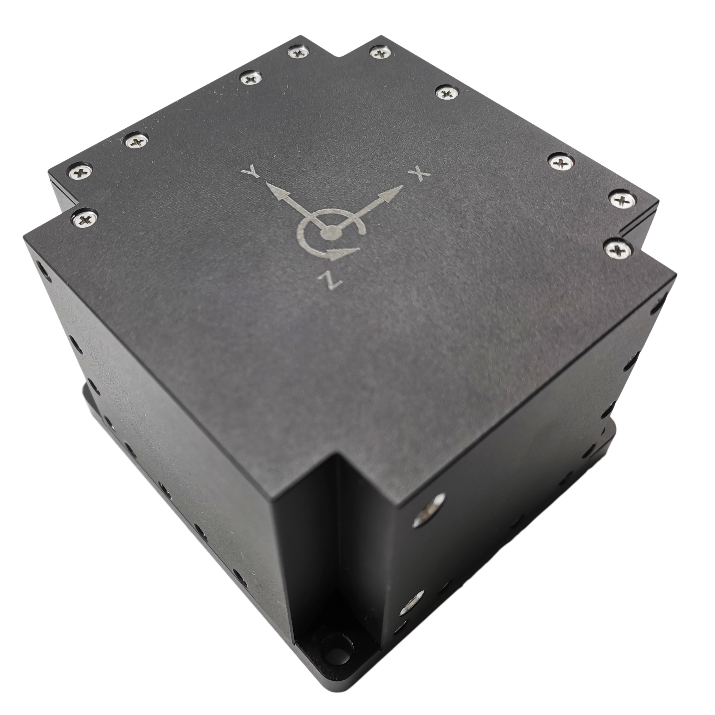

IMU800 Fiber optic gyro Inertial Measurement Unit IMU800 Product Introduction:

BW-IMU800 is a fiber optic gyro inertial measurement unit with high reliability,which can measure the angular velocity and acceleration velocity of the moving carrier. The acceleration and angular velocity deviations are estimated by a 6-state Kalman f

Shared:

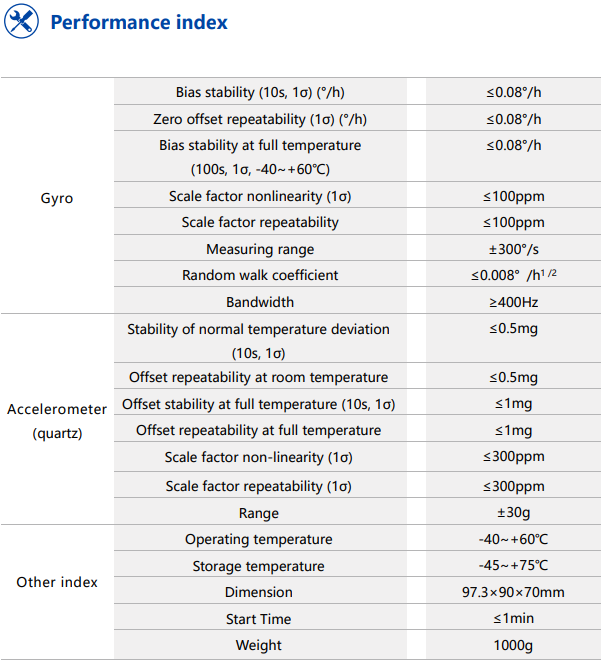

Technical Specifications

Bias stability (10s, 1σ) (°/h): ≤0.08°/h

Zero offset repeatability (1σ) (°/h): ≤0.08°/h

Scale factor nonlinearity (1σ): ≤100ppm

Scale factor repeatability: ≤100ppm

Gyro Measuring range: ±300°/s

Random walk coefficient: ≤0.008° /h1 /2

Accelerometer (quartz) range: ±30g


Product Advantages
