Fiber optic gyro Inertial Measurement Unit IMU910
Fiber optic gyro Inertial Measurement Unit IMU910

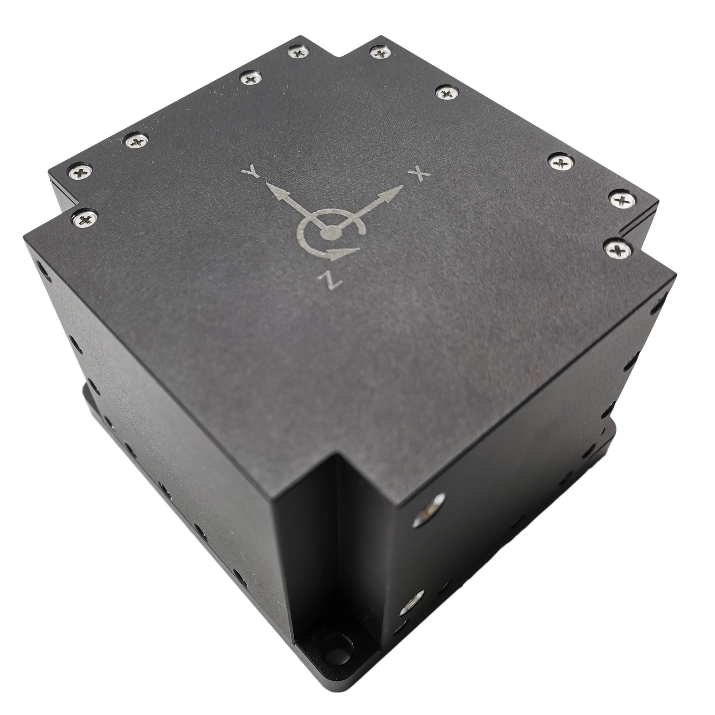

IMU910 Fiber optic gyro Inertial Measurement Unit IMU910 Product Introduction:

BW-IMU910 is a fiber optic gyro inertial measurement unit with high reliability,which can measure the angular velocity and acceleration velocity of the moving carrier. The acceleration and angular velocity deviations are estimated by a 6-state Kalman f

Shared:

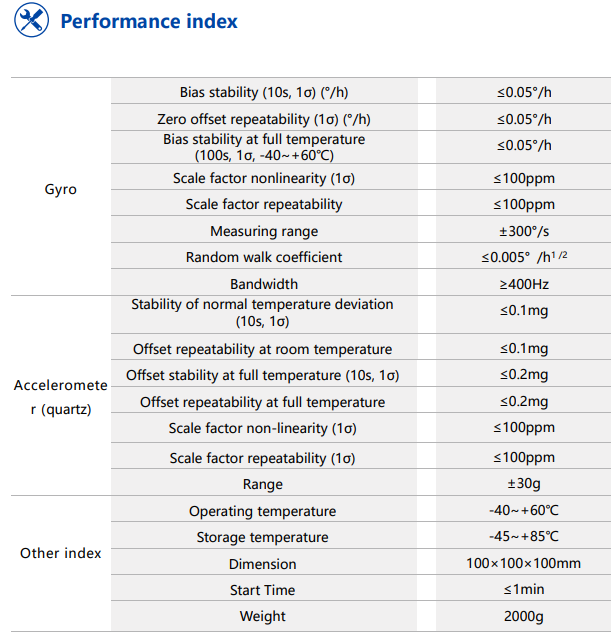

Technical Specifications

Gyro

Bias stability (10s, 1σ) (°/h): ≤0.05°/h

Zero offset repeatability (1σ) (°/h): ≤0.05°/h

Bias stability at full temperature (100s, 1σ, -40~+60℃)≤0.05°/h


Scale factor nonlinearity (1σ): ≤100ppm

Scale factor repeatability: ≤100ppm

Gyro Measuring range: ±300°/s

Random walk coefficient: ≤0.005° /h1 /2

Bandwidth: ≥400Hz
