Fiber optic gyro Inertial Measurement Unit IMU920
Fiber optic gyro Inertial Measurement Unit IMU920

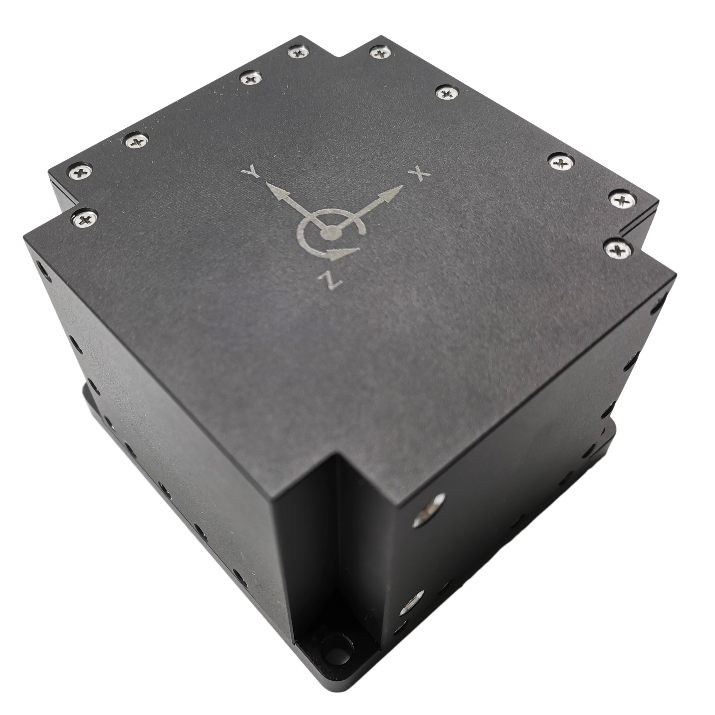

IMU920 Fiber optic gyro Inertial Measurement Unit IMU920 Product Introduction:

BW-IMU920 is a fiber optic gyro inertial measurement unit with high reliability,which can measure the angular velocity and acceleration velocity of the moving carrier. The acceleration and angular velocity deviations are estimated by a 6-state Kalman f

Shared:

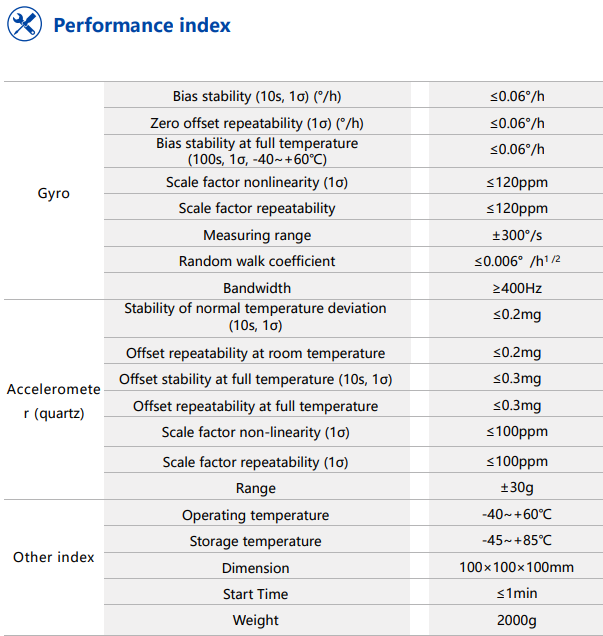

Technical Specifications

Bias stability (10s, 1σ) (°/h): ≤0.06°/h

Zero offset repeatability (1σ) (°/h): ≤0.06°/h

Bias stability at full temperature (100s, 1σ, -40~+60℃): ≤0.06°/h

Scale factor nonlinearity (1σ): ≤120ppm

Scale factor repeatability: ≤120ppm

Gyro Measuring range: ±300°/s

Random walk coefficient: ≤0.006° /h1 /2

Bandwidth≥400Hz

Product Advantages
