BWSENSING Low-cost Inertial Measurement Unit IMU100
BWSENSING Low-cost Inertial Measurement Unit IMU100

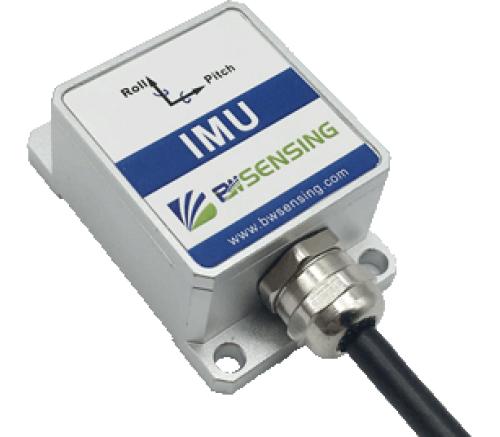

IMU100 BWSENSING Low-cost Inertial Measurement Unit IMU100 Product Introduction:

The BW-IMU100 is a low-cost inertial measurement device, which can measure the attitude parameters (roll angle, pitch angle, angular velocity, acceleration) of the movement carrier. The deviations of attitude and angular velocity are optimally

Shared:

Technical Specifications

Accuracy: 2°

Resolution: 0.01°

Tilt margin: Pitch ±90º, Roll ±180º

Supply Voltage: 5V DC

Zero instability: 100 °/h

Bias stability: ±20 mg

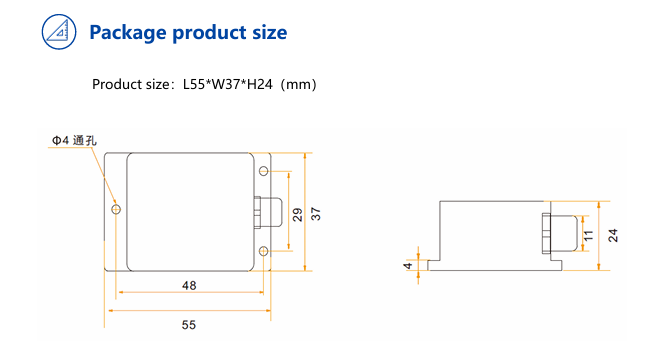

Dimension: L55 x W37 x H24(mm)

Vibration resistance: 2000g

Broad temperature range: -40℃~+85℃

Waterproof level: IP67

RS232/485/TTL interface output optional

Dynamic compensation, orthogonal compensation


Product Advantages

Accuracy: 2°

Resolution: 0.01°

Tilt margin: Pitch ±90º, Roll ±180º

Supply Voltage: 5V DC

Zero instability: 100 °/h

Bias stability: ±20 mg

Dimension: L55 x W37 x H24(mm)

Vibration resistance: 2000g

Broad temperature range: -40℃~+85℃

Waterproof level: IP67

RS232/485/TTL interface output optional

Dynamic compensation, orthogonal compensation
