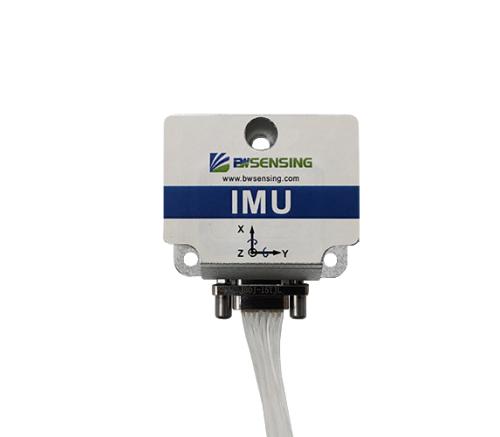

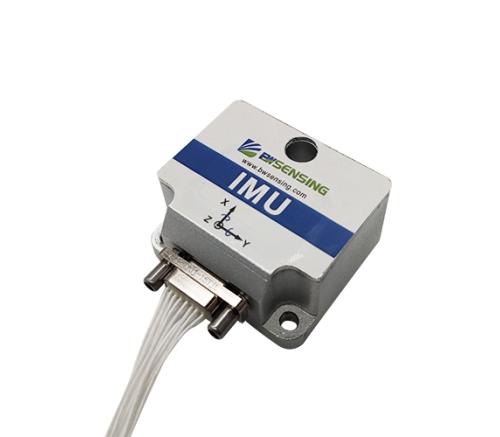

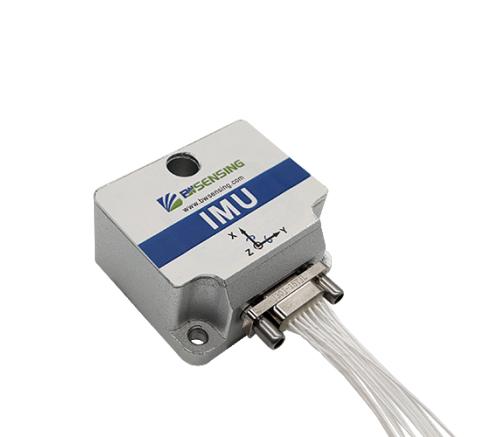

IMU600 Inertial Measurement Unit Product Introduction:

IMU600 is a large measuring range high-performance inertial measurement unit, which can measure the motion parameters (angular velocity, acceleration) of the carrier.
IMU600 uses highly reliable MEMS accelerometers and gyroscopes.

Shared:

Technical Specifications

Gyro

Range :±400°/s

Bias stability at full temperature (ALLAN):<1°/h

Normal temperature zero bias stability (10S smooth) :<2°/h

Scale factor repeatability:<50ppm



Accelerometer

Range:±80 g

Resolution:0.1mg

Bias stability at room temperature:0.1mg

Zero offset repeatability (6 times):<0.5mg


RS422 output



Anti-vibration performance:500Hz

Startup delay:200ms


Application

● - AGV

● - Automatic Artillery

● - UAV

●       INS / GPS Navigation


Product Advantages
