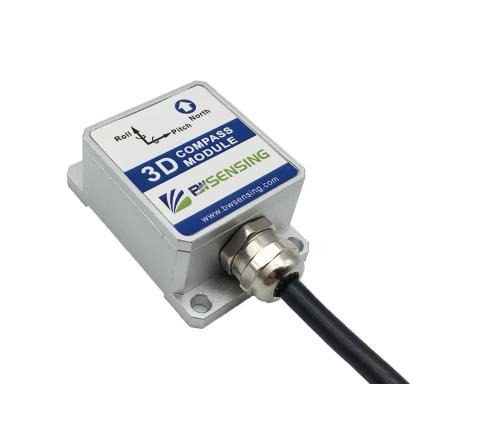

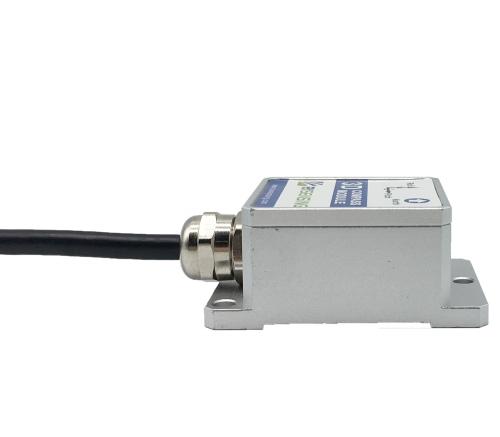

SEC345 BWSENSIG Angle Compensation 3D Compass SEC345 Product Introduction:

The SEC345 is a 3-axes digital compass with high accuracy. It offers high accuracy heading information when tilt angle reaches 40° initially. SEC345 is widely used in the antenna steadiness, vehicle navigation, system integration, etc.

Shared:

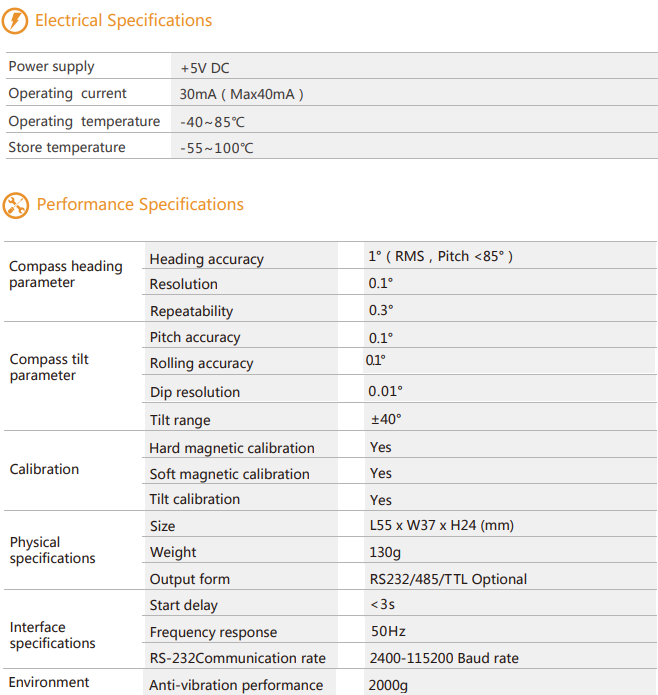

Technical Specifications

Heading Accuracy

Pitch Accuracy0.15°

Roll Accuracy0.15°

Voltage5V DC

Output ModeRS232/RS485/TTL Optional

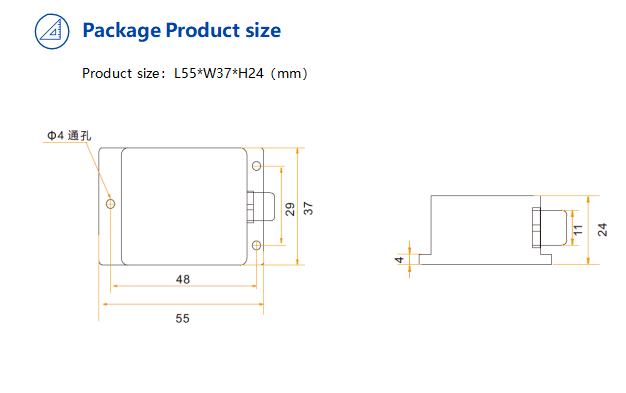

Dimension:  55×37×24mm

Protection Level: IP67


Product Advantages
1522039676218109.png Accuracy1522110325448404.png Resolution
1°(heading)N/A


1522039614484057.png Measuring range1522039632548392.png Broad temperature range
N/A-40℃~+85℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥90000 hoursIP67
