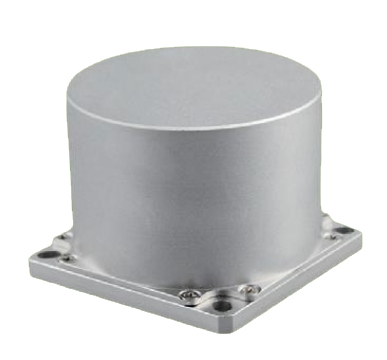

Digital Single Axis Fibre Optic Gyroscope AgileLight-100A
Digital Single Axis Fibre Optic Gyroscope AgileLight-100A
AgileLight-100A Digital Single Axis Fibre Optic Gyroscope AgileLight-100A Product Introduction:

●Size(mm): Φ60×H30
●Measuring axis: Single axis
●Measuring range(º/s): -450~450
●Bias stability(º/h),1σ: ≤1
●Bias repeatability(º/h),1σ: ≤1
●Random walk coefficient(º/ √hr): ≤0.1
●Frequency bandwidth(Hz): ≥100
●Output mode: RS 422
●Connector:

Shared:

Technical Specifications







Technical Parameter

Axis


Single axis

Measurement range


±1000°/s

Zero-bias stability (10s, 1σ, Room temperature)


0.3°/h

Zero-bias repeatability (1σ, Room temperature)


0.3°/h

Random Walk Factor


≤0.03°/√h

Scale factor non-linearity


100ppm

Scale factor asymmetry


100ppm

Scale factor repeatability


100ppm

Data refresh rate


200~2000Hz

Bit rate


115200~921600bps







Physical

Bandwidth (-3dB)


≥200Hz

Power Input


-5V~+5V

Maximum Power Consumption


≤6W

Start-up time


≤1s

Dimensions


Φ50×H38

Communication Interface


RS422

Operating Temperature


-40+65

Storage temperature


-50+80


Product Size
