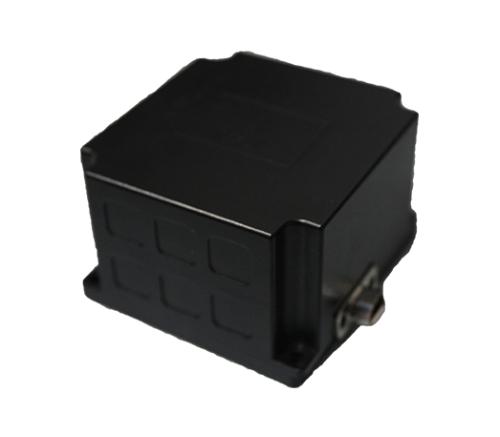

Digital Double-axes Fibre Optic Gyroscope AgileLight-100B
Digital Double-axes Fibre Optic Gyroscope AgileLight-100B
AgileLight-100B Digital Double-axes Fibre Optic Gyroscope AgileLight-100B Product Introduction:

●Size(mm): L64×W64×H45
●Measuring axis: Double axis
●Measuring range(º/s): -450~450
●Bias stability(º/h),1σ: ≤1
●Bias repeatability(º/h),1σ: ≤1
●Random walk coefficient(º/ √hr): ≤0.1
●Output mode: RS 422
●Connector: J30J-9TJL

Shared:

Technical Specifications













Technical Parameter

Angular velocity measurement range


±450°/s

Zero-bias stability (10s, 1σ, Room temperature)


1°/h

Resolution


0.15°/h

Scale factor  relative error


200ppm

3dB Dynamic Response Frequency Band


1kHz

Withstand maximum vibration


18g

Withstand maximum impact


100g,6ms,half sine wave

Work temperature


-45+70

Storage temperature


-55+85







Physical

Volumetric


65mm×70mm×51mm

Weight


350g

Mounting dimensions


4-φ4.2mm

 Power consumption


6W

Supply voltage


+5VDC

Electrical interface


RS 422

(customisable)

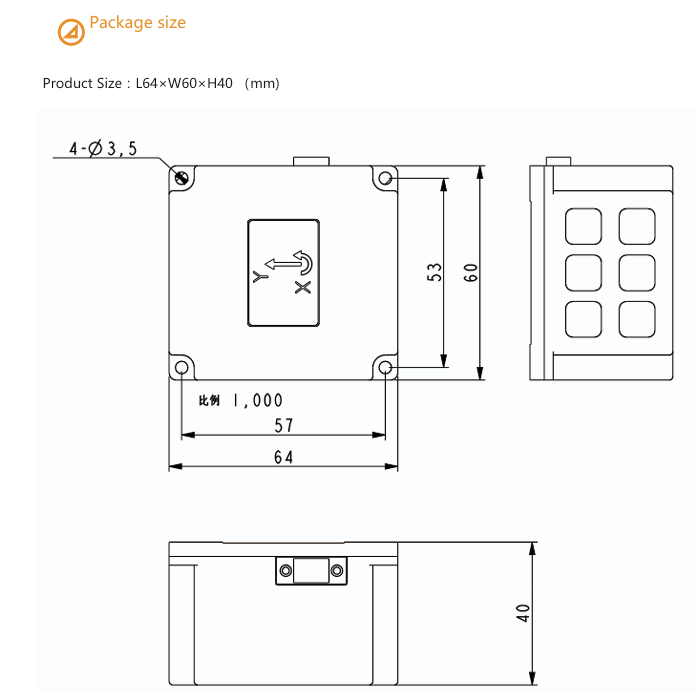

Product Size
