● Three-axis gyroscope, three-axis magnetometer,three-axis accelerometer
● IMU output up to 1000HZ
● Rapid calibration algorithm
● High precision, compact size
● Wide operating temperature range: -40°C to +85°C

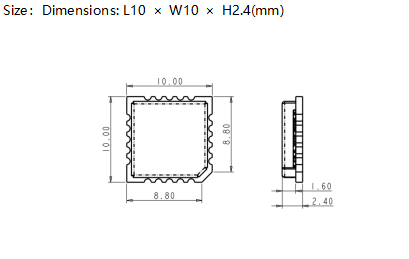

● Dimensions: L10 × W10 × H2.4(mm)
Shared：
Power voltage | 3.3V DC |
Working current | ＜150mA |
Operating temperature | -40℃~+85℃ |
| -55℃~+100℃ |
Accelerometer | Gyroscope | |||
Range | ±8g | ±400°/s | ±1000°/s | |
Noise density | 200 µg/√Hz | 1.5mdps/√Hz | 5 mdps/√Hz | |
Bandwidth | 100Hz | 100Hz | ||
Zero bias stability (ALLEN) | 0.15ug | 3 °/h | ||
Environment | Baud Rate | 9600–921600 (default 115200) | ||
User Calibration Procedure | Calibration Method | Rapid calibration | ||
Connector | USB Type-A cable (1m length) |
Protection level | Not specified (does not represent final product protection rating) |
Shell material | Magnesium-aluminium alloy anodised finish |
Installation | 2 x M2 copper bolts |
-
