GNSS Displacement Sphere
GNSS Displacement Sphere

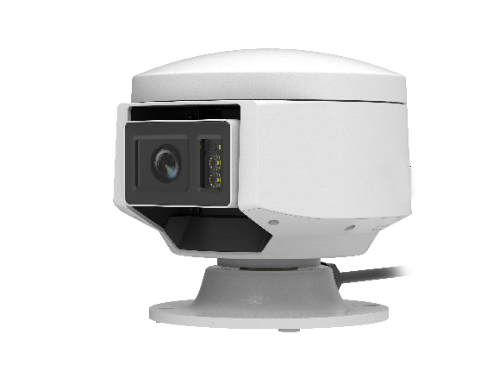

BW-GNSS-DS GNSS Displacement Sphere Product Introduction:

BW-GNSS-DS is a GNSS displacement observation sphere with visual displacement monitoring and millimetre accuracy positioning launched by BWSENSING.

Shared:

Technical Specifications

General   Specification

Dimensions

252.1 mm × 232.3 mm × 221.2 mm

Weight

4.2 kg

Material

Corrosion-resistant material

Operating temperature and   humidity

-40 ℃~85 ℃;humidity less than 95%

General features

Mirroring, password protection,   watermarking technology, IP address filtering

Defogging

Support


Product Advantages
  • Millimeter-level positioning: highly sensitive GNSS omni-directional receiving antenna integrated RTK technology, supporting five-star 16-frequency, to obtain millimeter-level displacement data changes.

  • Visualization inspection: the industry's first video linkage review, fusion of video sensing and GNSS technology, micro PTZ omnidirectional adjustment, remote visualization.

  • One-stop application: low power consumption design, average power consumption less than 2W, remote automatic wake-up; support 4G/wired network transmission; RS-485 expansion interface, can be connected to external rain gauge, etc.; audio interface, can be connected to external sound columns, etc.; corrosion-resistant material to adapt to the open-air environment.

GNSS

Static accuracy

Planar±(2.5   + 0.5 × 10 - 6 × D)mm, D is the baseline   distance(unit: km)

Vertical±(5.0 + 0.5 × 10 - 6 × D)mm,D is the baseline distance(unit: km)

Differential data

RTCM2.x/3.x

Satellite support

GPS:L1,L1C,L2C,L2P,L5

BDS-2B1I,B2I,B3I

BDS-3B1I,B3I,B1C,B2a,B2b*

GLONASS:G1,G2

Galileo:E1,E5a,E5b

QZSS:L1,L2C,L5

SBAS:L1

IRNSS:L5*

L-band

Differential format support

CMR,RTCM2.X,RTCM3.X

Output format support

NMEA-1083,RTCM2.X,RTCM3.X
