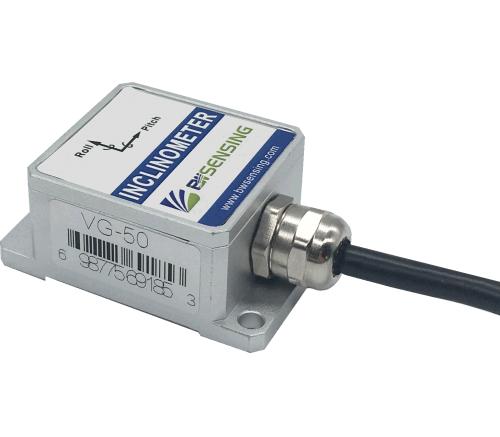

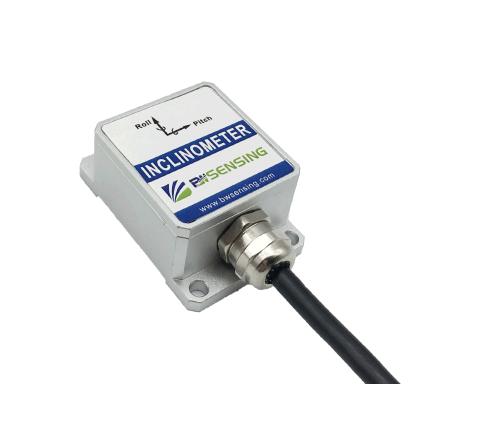

BWSENSING Ultra-low Cost Digital Dynamic Inclinometer BW-VG50
BWSENSING Ultra-low Cost Digital Dynamic Inclinometer BW-VG50
BWSENSING Ultra-low Cost Digital Dynamic Inclinometer BW-VG50
BWSENSING Ultra-low Cost Digital Dynamic Inclinometer BW-VG50
BW-VG50 BWSENSING Ultra-low Cost Digital Dynamic Inclinometer BW-VG50 Product Introduction:

●Non-linear compensation, quadrature compensation
●Dynamic and static measurement
●Gyro drift compensation
●Special offset tracking algorithm to eliminate drift
●RS232/485/TTL/CAN interface output optional
●Wide temperature range:-40℃~+85℃
●High-

Shared:

Technical Specifications

Voltage

5-12V DC

Working current

30mA (40m Max)

Temperature in use

-40~85℃

Temperature in store

-55~100℃



Attitude Parameter

Dynamic accuracy


Static accuracy


0.3°

Resolution


0.01°

Tilt margin


Pitch ± 90º, roll ± 180º.



Physical properties

Dimension


L55 x W37 x H24(mm)

Weight (with wire)


130g

Weight (With packaging)


210g





Interface characteristics

Start delay


<50ms

Maximum sampling rate frequency


100Hz

Serial communication rate


2400 to 115200 baud rate

Digital output format


Binary High Performance Protocol

Trouble-free work on average

≥90000 hours

EMC

According to GBT17626

Insulation Resistance

≥100 MΩ

Surge suppression

2000g, 0.5ms, 3 Time/shaft

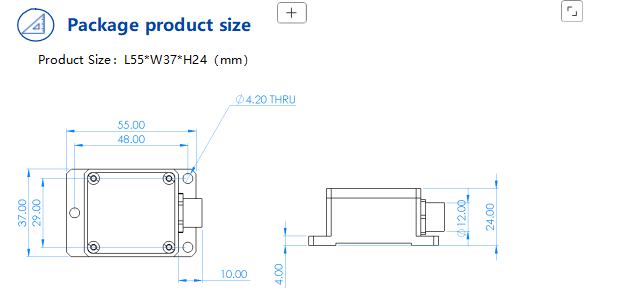

Product Size
