● Dual axis tilt measurement
● Resolution：0.02°
● Power supply：9-36V

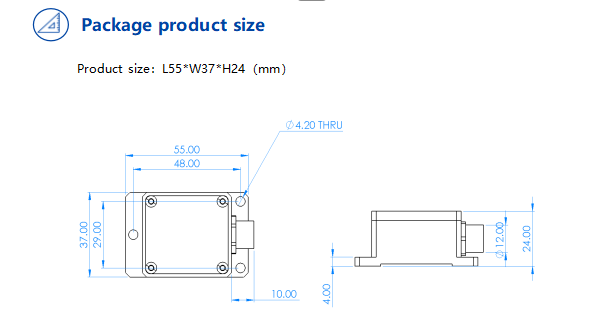

● Volume：L55*W37*H24（mm）
● Highest accuracy：0.2°
● Range：±90°
● Output：CAN
● IP67 Protection level
Shared：
Parameter | Condition | Minimum | Typical value | Maximum | |||
Power voltage(V) | 9 | 12 | 36 | ||||
Operating current(mA) | No load | 20 | 30 | 40 | |||
Operating temperature(℃) | -40 | 85 | |||||
Storage temperature(℃) | -55 | 100 |
Measurement Range (°)
| Condition | ±10 | ±30 | ±60 | ±90 | ||||||
Measurement axis | Mutually perpendicular | X-Y | X-Y | X-Y | X-Y | ||||||
Accuracy(°) | Room temperature | 0.2 | 0.2 | 0.2 | 0.2 | ||||||
Resolution(°) | Completely still | 0.02 | 0.02 | 0.02 | 0.02 | ||||||
Cross axis error | -40〜85℃ | 0.1 | 0.1 | 0.1 | 0.1 | ||||||
Start-up time | ＜50ms | ＜50ms | ＜50ms | ＜50ms | |||||||
Output frequency (Hz） | 5-100Hz adjustable | Up to 100 | Up to 100 | Up to 100 | Up to 100 | ||||||
Mean time between failures MTBF | ≥90000 h | ||||||||||
Electromagnetic compatibility | According to GBT17626 | ||||||||||
Insulation resistance | ≥100 MΩ | ||||||||||
Impact resistance | 2000g，0.5ms，3times/ axis | ||||||||||
Weight (g） | 210（ Without outer packaging ） | ||||||||||
| Application | |
● Industrial automatic leveling ● Medical instruments ● Photovoltaic automatic tracking ● Tower tilt monitoring | ● Special valve ● Oil drilling equipment ● Industrial converter ● Lifting equipment inclination control |
-
