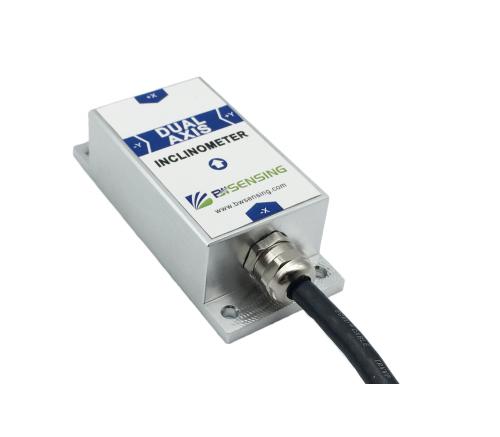

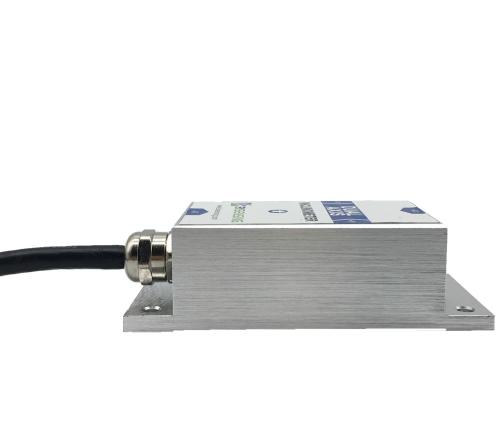

● Dual axis inclination measurement
● Resolution:0.001°
● Power supply:9-35V

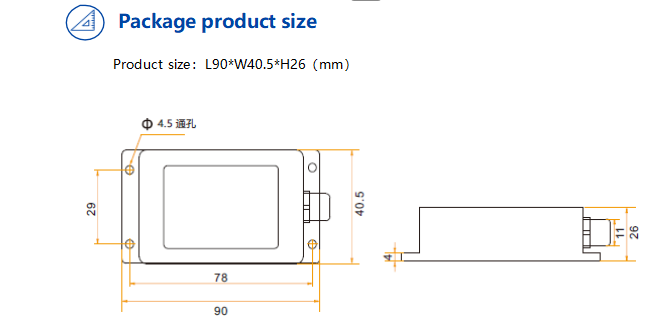

● Dimension:L90*W40.5*H26(mm)
● Highest accuracy:0.005°
● Range:±30°
● Output:RS485/TTL optional
● IP67 Protection level

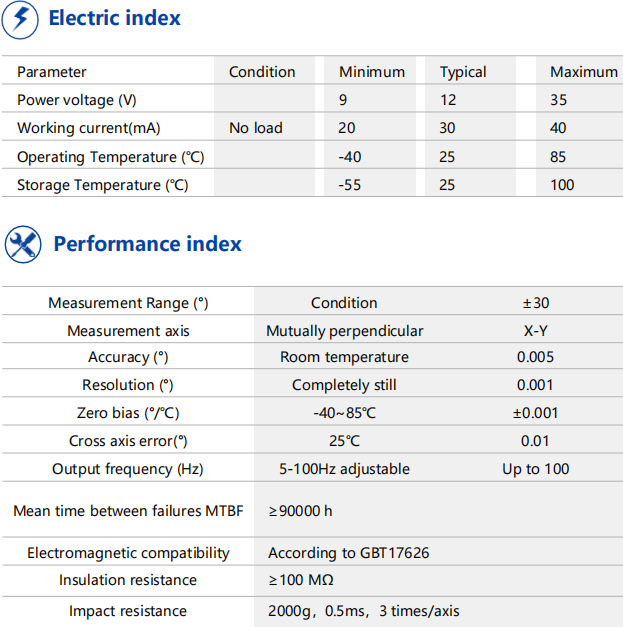

Electric index
Parameter | Condition | Minimum | Typical | Maximum | |||
Power voltage (V) | 9 | 12 | 35 | ||||
Working current(mA) | No load | 20 | 30 | 40 | |||
Operating Temperature (℃) | -40 | 25 | 85 | ||||
Storage Temperature (℃) | -55 | 25 | 100 |
Performance index
Measurement Range (°) | Condition | ±30 |
Measurement axis | Mutually perpendicular | X-Y |
Accuracy (°) | Room temperature | 0.005 |
Resolution (°) | Completely still | 0.001 |
Zero bias (°/℃) | -40~85℃ | ±0.001 |
Cross axis error(°) | 25℃ | 0.01 |
Output frequency (Hz) | 5-100Hz adjustable | Up to 100 |
Mean time between failures MTBF | ≥90000 h | |
Electromagnetic compatibility | According to GBT17626 | |
Insulation resistance | ≥100 MΩ | |
Impact resistance | 2000g,0.5ms,3 times/axis |
