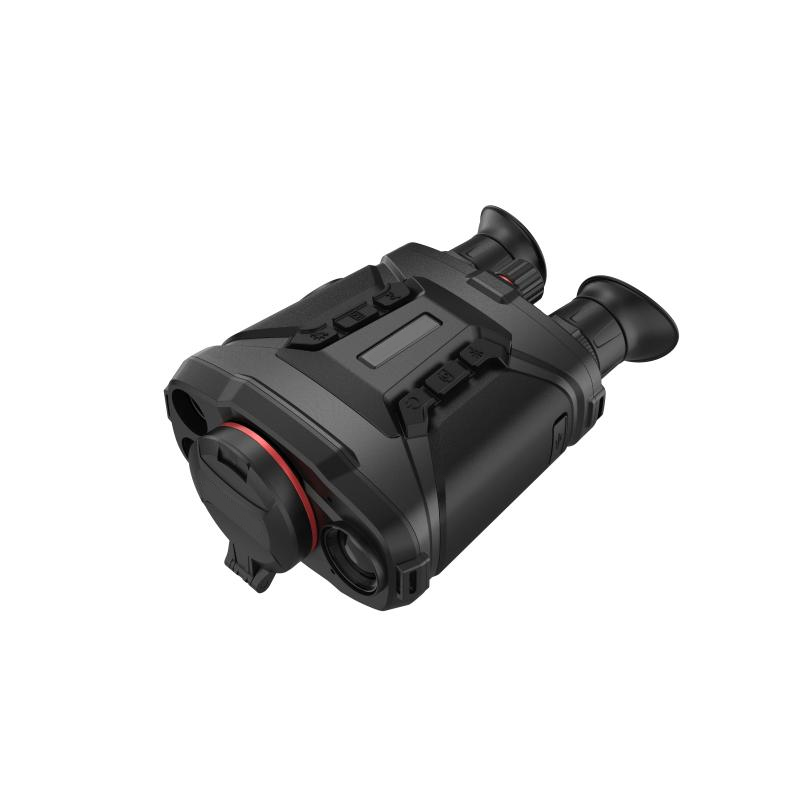

Binocular Outdoor Observation Outdoor observation products Product Introduction：

Product Manual Download Get Best Price

Shared：

Technical Specifications Product Size

Technical Specifications


system parameter
Image size	12 μm
Detection distance	2083 m
field of view	5.3 ° × 4.0 °
electronic amplification	1×，2×，4×，8×, 16 ×
laser distance measurement	1 km
stockpile	Built-in 64GB EMMC
endurance	8h of continuous operation when ambient temperature reaches 25 °C and Wi-Fi, CVBS, visible light functions are turned off
protection class	IP67


Functional characteristics
Thermal Imaging Movement	384 × 288 resolution high sensitivity detector
	Supports 3D noise reduction function, image detail enhancement function
	Lens focal length 50 mm, aperture 0.9
Visible movement	2560 × 1440 resolution low-light detector
	Lens Focal Length 31mm
	Supports automatic day/night switching
	Supports optical fogging
display function	Features a 1024 x 768 resolution, 0.39-inch OLED display
display function	Supports thermal/visible/dual-light fusion image/picture-in-picture
power system	Supports removable battery
power system	When the ambient temperature reaches 25 ℃, turn off the Wi-Fi, CVBS, visible light function, continuous operation can be 8h
system function	Supports 1 km laser ranging
	Support electronic compass, GPS
	Wi-Fi hotspot support
	Built-in 64GB EMMC with photo/video support

Product Size
