·Three-axis accelerometer, three-axismagnetometer
·Static measurement accuracy up to 0.25°
·Offset tracking algorithm eliminates drift
·High precision, low cost

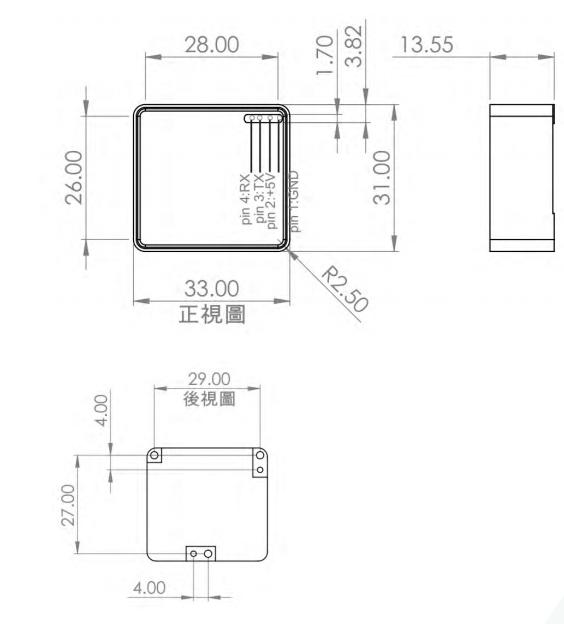

·Volume: L33*W31*H13.55 (mm)
·With hard magnetic,soft magnetic and tiltcompensation
Shared：
Compass heading parameters | Heading accuracy
| 0.3RMS（Horizontal） | |
＜0.5 RMS（Pitch<20°）
| |||
Measuring range
| 0~360° | ||
Repeatability
| 0.05°（RMS） | ||
Compass tilt parameters
| Pitch accuracy
| 0.2°
| |
Roll accuracy
| 0.2°
| ||
Resolution
| 0.01° | ||
Measuring range
| -90°~90° | ||
Calibration
| Plane calibration
| Yes
| |
Multi-sided calibration | Yes | ||
High-precision magnetometer calibration
| Yes | ||
16 Point calibration
| Yes | ||
Physical properties
| Size
| L33*W31*H13.55 (mm)
| |
Weight
| <100g
| ||
Output form
| RS232/TTL interface
| ||
Interface characteristics
| Startup delay
| <3s
| |
Maximum sampling rate
| 50Hz
| ||
Baud Rate
| 9600~115200 2000g
| ||
Surroundings
| Vibration resistance
| 2000g |
-
