●High-precision
●Small-size

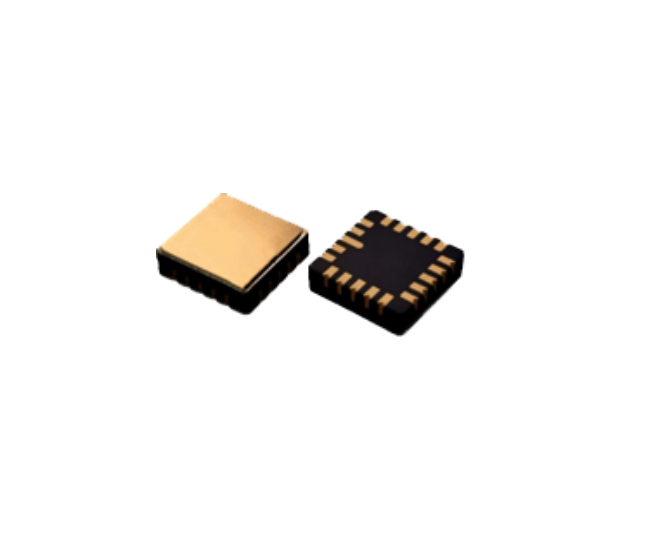

●MEMS
●Independently designed
Performance index
量程(Measurement Range) | 100 | deg/s |
输出精度(Resolution) | 24bit | bits |
数据输出率(Data Rate) | 2K | Hz |
延时(Group delay) | <50 | ms |
相位延时(@3DB) | / | deg |
带宽(Bandwidth (-3dB)) | 12 | Hz |
标度因子(Scale Factor at 25°C) | 80000 | lsb/deg/s |
标度因子重复性(Scale Factor Repeatability )(1σ ) | <100 | ppm |
标度因子温漂(Scale Factor VS Temperature )(1σ ) | <300 | ppm |
刻度因子非线性(Scale Factor Non-Linearity)(1σ ) | <300 | ppm |
零偏稳定性(Bias Instability) | <0.02 | deg/hr |
零偏稳定性(Bias stability @10s) | <0.1 | deg/hr |
零偏稳定性(Bias stability @1s) | <0.3 | deg/hr |
角随机游走(Angular Random Walk) | <0.005 | °/ √h |
零偏温漂(Bias error over temperature)(1σ ) | 3 | deg/Hr |
零偏温漂(Bias temperature variations, calibrated)(1σ ) | <0.3 | deg/Hr |
零偏重复性(Bias Run-Run)(1σ ) | <0.1 | deg/hr |
宽带噪声(Noise Peak to Peak) | <0.005 | deg/s |
G值灵敏度(g Sensitivity) | <1 | °/hr/g |
振动整流误差(VRE) | <1 | °/hr/g(rms) |
上电时间(Startup Time) | 750 | Ms |
驱动轴频率(Sensor Resonant Frequency) | 10.5-13.5K | hz |
重量Weight | 1 | g |
尺寸 Dimension | 11×11×2.5 | mm |
Environment, Power and Physical
冲击(带电)(Shock (operating)) | 500g,1ms |
抗冲击(不带电)Shock (survival) | 10000g,10ms |
振动(带电)Vibration Operating | 18grms |
工作温度Operating Temperature | -40~85 ℃ |
电源电压(Supply voltage) | 5±0.25V |
电流(Current consumption) | 45ma |
