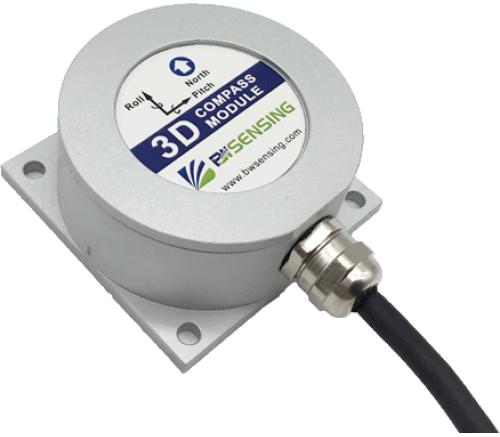

BWSENSING Nine axis all attitude electronic compass HEC395
BWSENSING Nine axis all attitude electronic compass HEC395
HEC395 BWSENSING Nine axis all attitude electronic compass HEC395 Product Introduction:

●Three-axis gyroscope, three-axis accelerometer, three-axis magnetometer
●Dynamic and static measurements
●Temperature offset tracking algorithm eliminates drift
●Heading accuracy: 0.5°
●Wide temperature range:-40℃~+85℃
●Small size:L60×W59×H29(mm)

Shared:

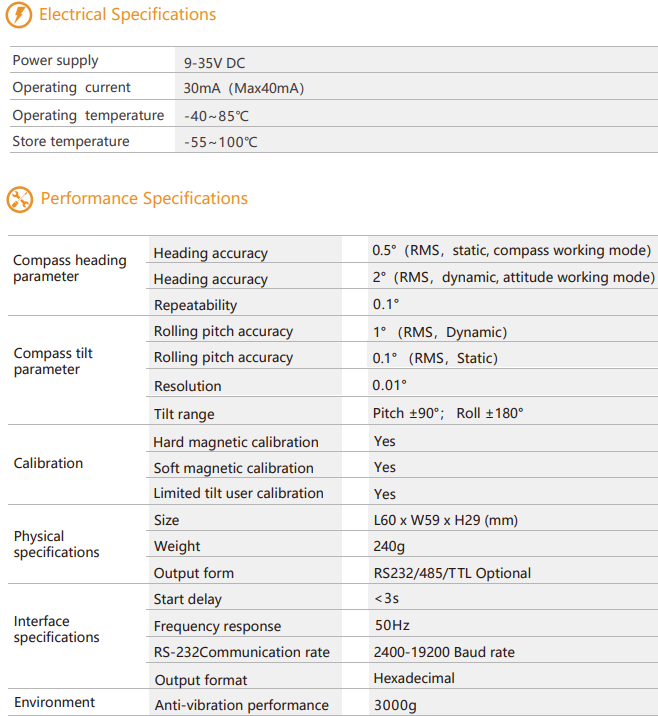

Technical Specifications

Performance Specifications

Compass heading parameter

Heading accuracy


0.5°(RMS,static, compass working mode)

2°(RMS,dynamic, attitude working mode)

Repeatability


0.1°

 Compass tilt parameter

Rolling pitch accuracy


1°(RMS,Dynamic)

0.1°(RMS,Static)

Resolution


0.01°

Tilt range


Pitch ±90°;Roll ±180°

 Calibration

Hard magnetic calibration


Yes

Soft magnetic calibration


Yes

Limited tilt user


Yes

 Physical specifications

Dimension


L60 x W59 x H29 (mm)

Weight


240g

Output form


RS232/485/TTL optional

 Interface specifications

Start-up delay


<3s

Maximum output frequency


50Hz

RS-232 Communication rate


2400 to 115200 Baud rate

Environment

Anti-vibration performance


3000g

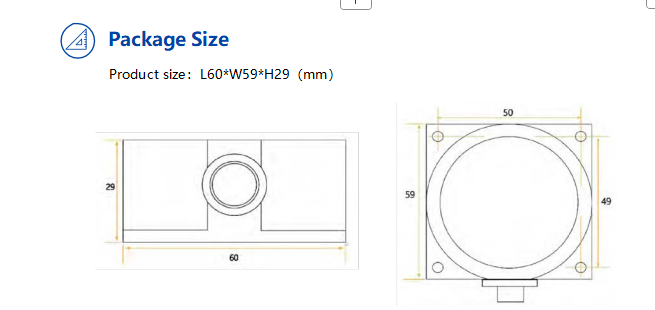

Product Size
