Tilt margin: Pitch ±90º, Roll ±180º

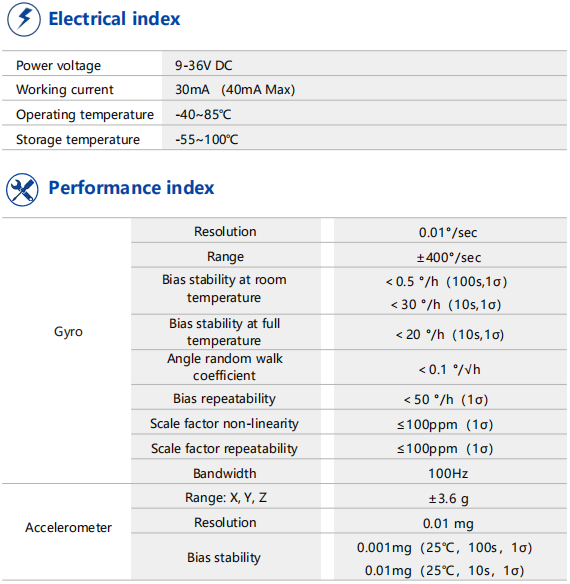

Supply Voltage: 9-35V DC

Zero instability: 100 °/h

Bias stability: ±20 mg

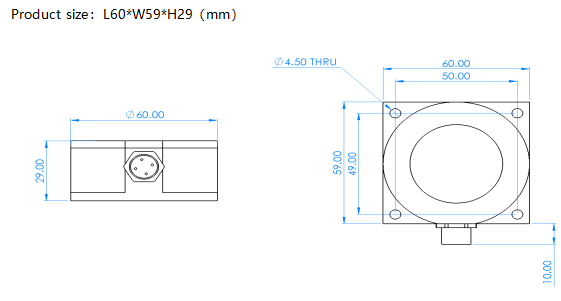

Dimension: L60 x W59 x H29（mm）

Vibration resistance: 2000g

Broad temperature range: -40℃~+85℃

Waterproof level: IP67

Dynamic compensation, orthogonal compensation

If garbled characters appear on this manual when you preview online, please download it. This problem could be solved. We recommend Adobe Acrobat Reader DC. If still cannot, please contact us (sales@bwsensing.com), we will send you the newest manual via email. Thank you for your understanding.

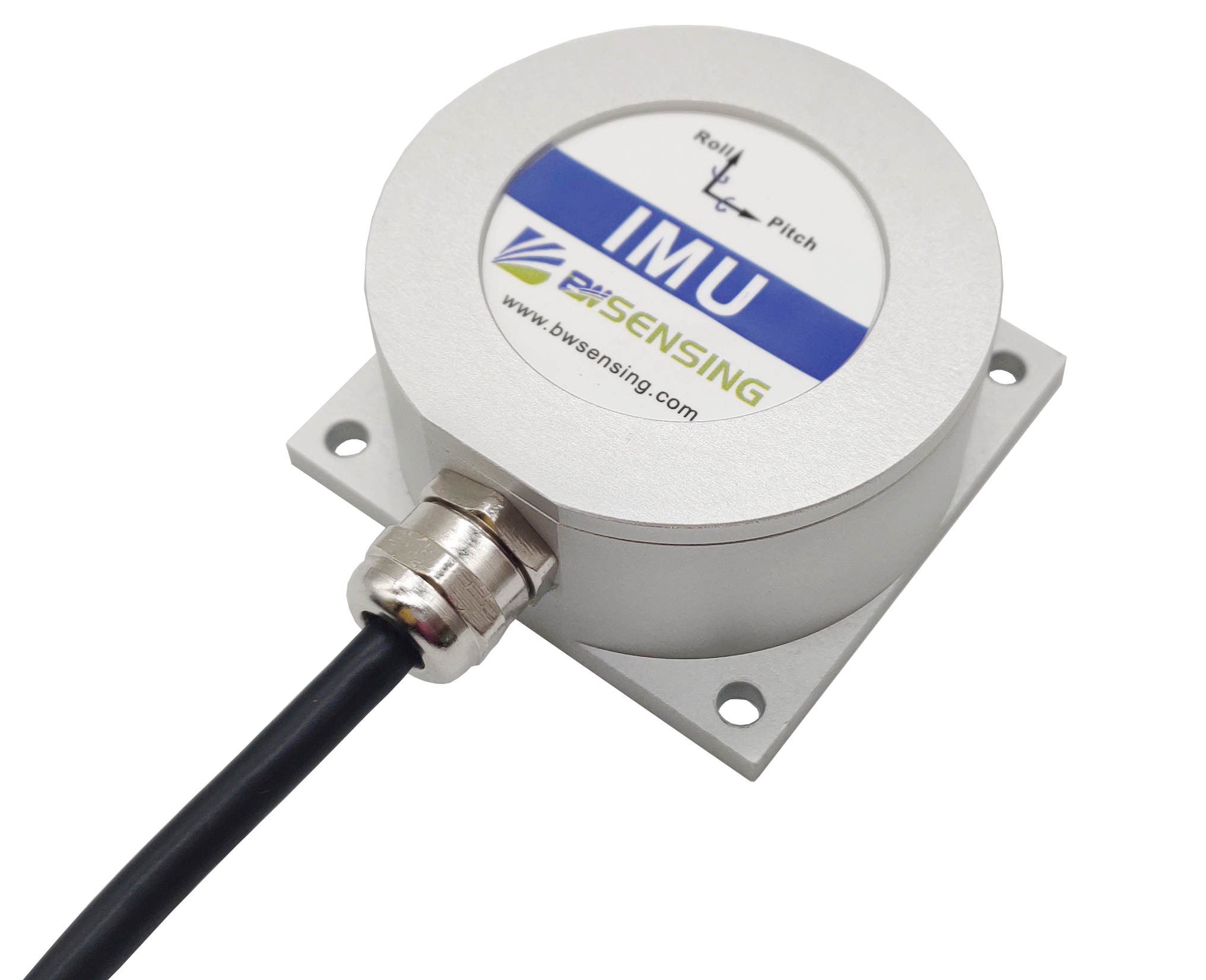

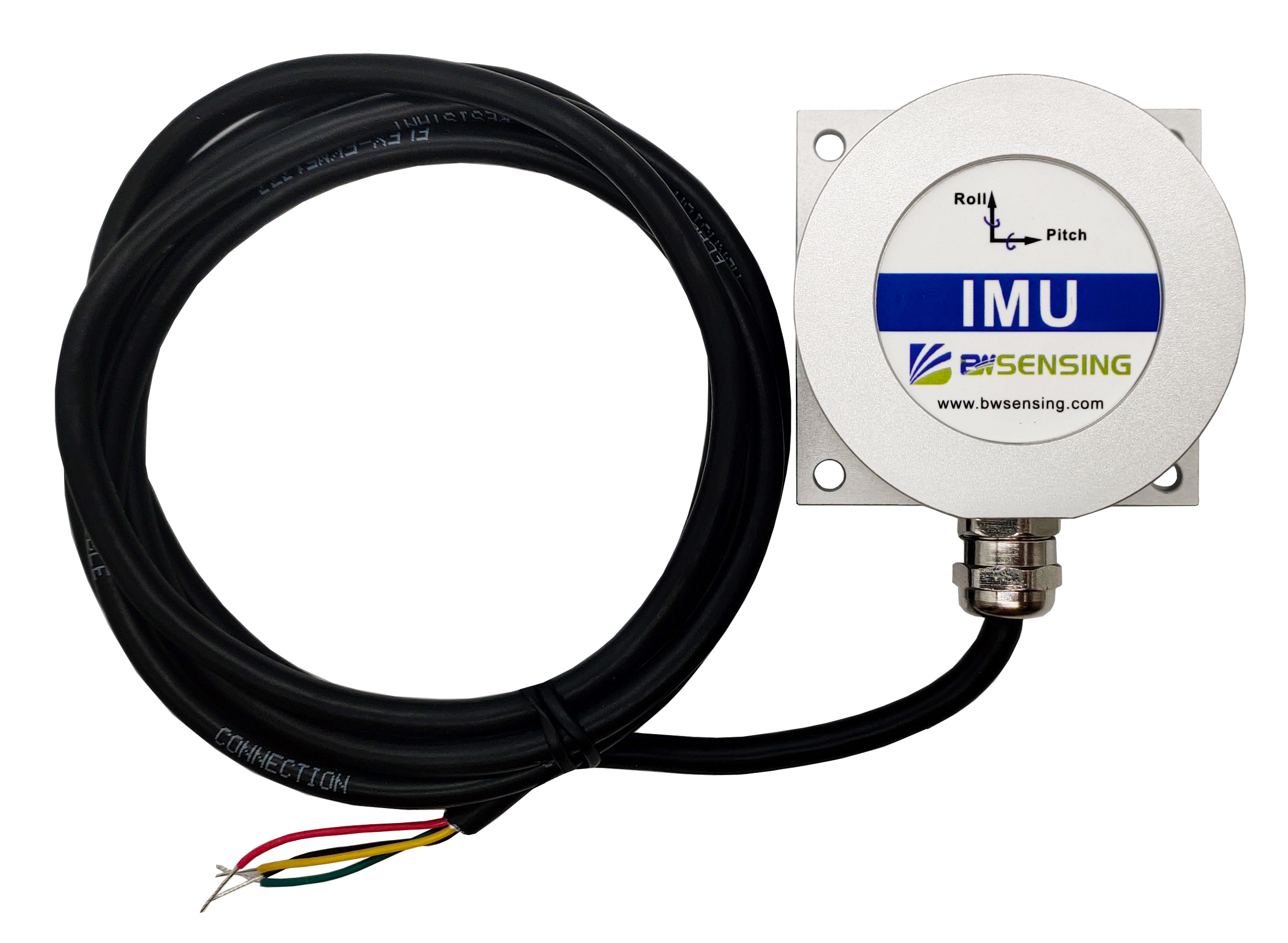

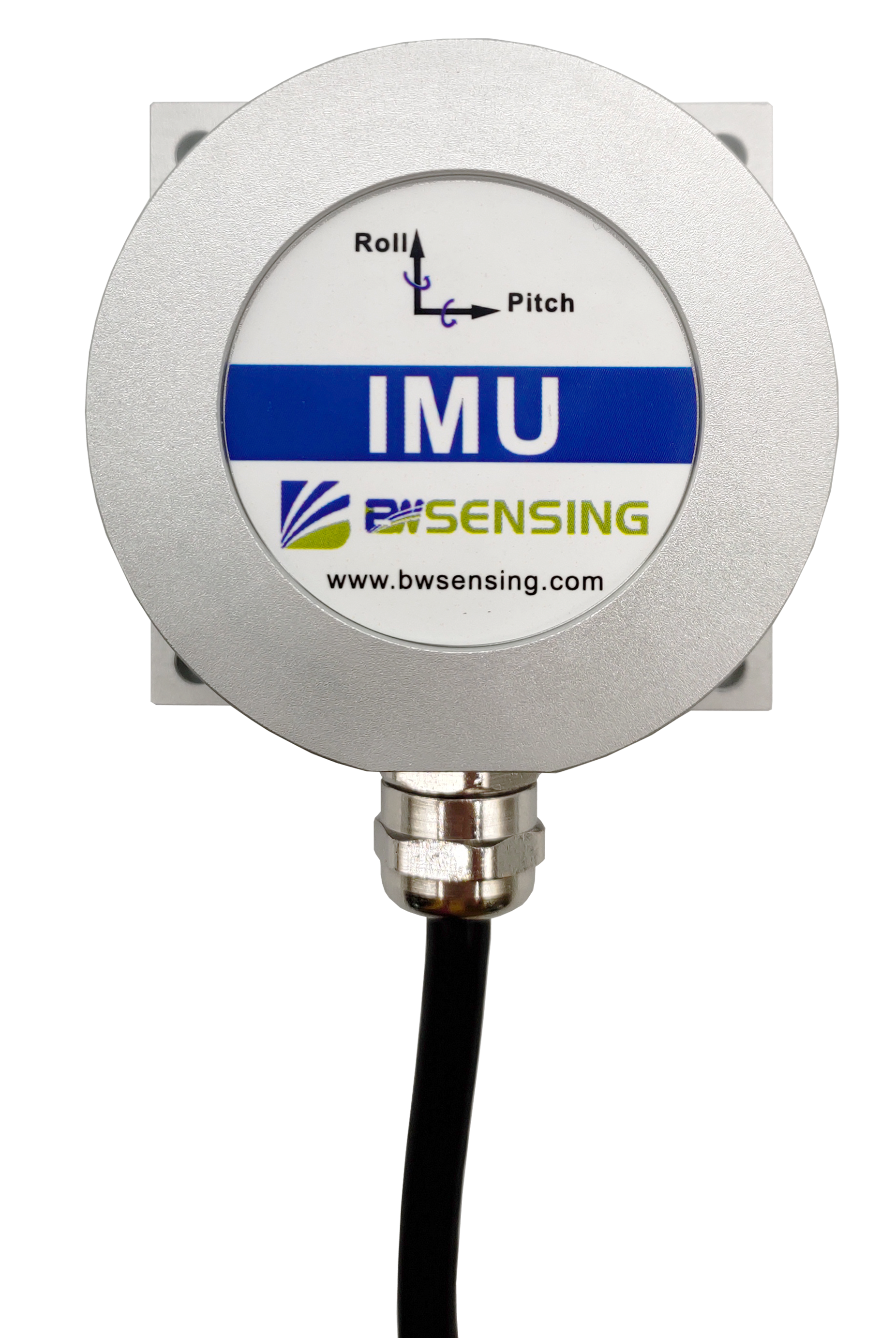

As a low-cost inertial measurement sensor, the BW-IMU127 measures the attitude parameters of the motion carrier (roll angle, pitch angle, angular velocity, acceleration).
