IMU227

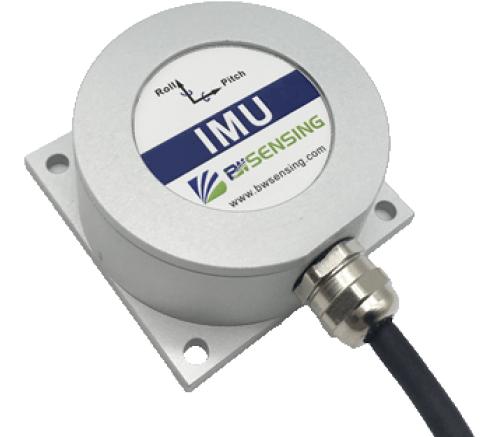

Low-cost Modbus Inertial Measurement Unit IMU227
Product Introduction：
● RS232 /485/TTL/Modbus Output optional
● Wide temperature range：-40℃~+85℃，Temperature compensation
● Small size：L60×W59×H29mm
●Power voltage 9-36V DC
●Working current 30mA（40mA max）
●Operating temperature-40~85℃
●Storage temperature-55~100
Shared：

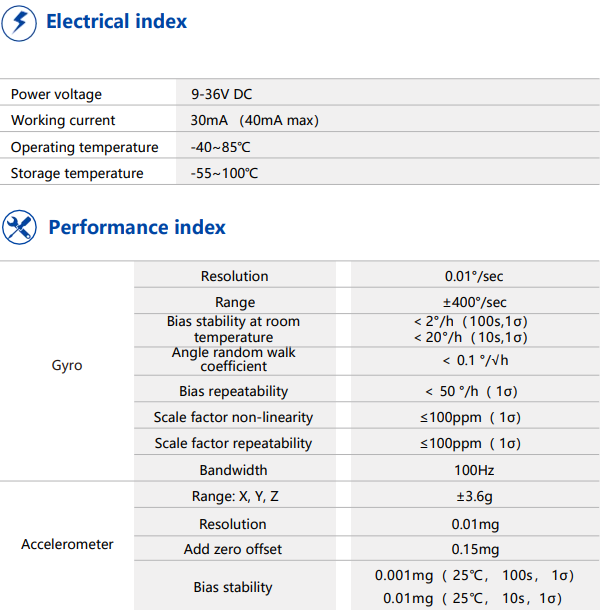

Technical Specifications
Performance index
| Gyro | Resolution | 0.01°/sec |
| Range | ±400°/sec | |
| Bias stability at room temperature | ＜2°/h（100s,1σ） ＜20°/h（10s,1σ） | |
| Angle random walk coefficient | ＜0.1°/√h | |
| Bias repeatability | ＜50°/h（1σ） | |
| Scale factor non-linearity | ≤100ppm（1σ） | |
| Scale factor repeatability | ≤100ppm（1σ） | |
| Bandwidth | 100Hz | |
| Accelerometer | Range:X,Y,Z | ±3.6g |
| Resolution | 0.01mg | |
| Accelerometer zero offset | 0.15mg | |
| Zero bias stability | 0.001mg（25℃，100s，1σ） 0.01mg（25℃，10s，1σ） |
Mechanical Index
| Connector | Metal joint（Cable 1.5m) |
| Protection level | IP67 |
| Shell material | Magnesium aluminum alloy anodizing |
| Installation | Four M4 screws |

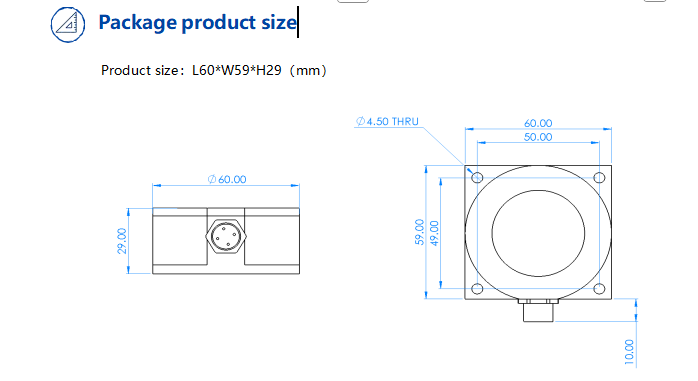

Product Size
-
