IMU327

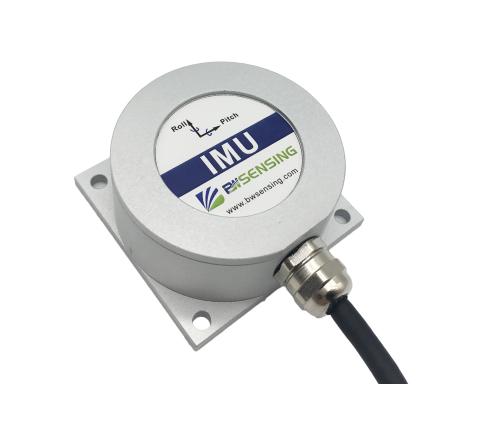

Cost-effective Modbus inertial measurement unit IMU327
Product Introduction：
● Optional RS232/485/TTL/Modbus interface output
● Wide temperature range: -40℃~+85℃, with temperature compensation
● Compact dimensions: L60×W59×H29mm
● Dynamic compensation, orthogonal compensation
● Sampling frequency up to 500Hz
● The power s
Shared：
Technical Specifications
Performance index
| Gyro | Resolution | 0.01°/sec |
| Range | ± 400°/sec | |
| Bias stability at room temperature | ＜ 1.5°/h（ 100s,1σ） ＜ 15°/h（10s,1σ） | |
| Angle random walk coefficient | ＜ 0.1 °/√h | |
| Bias repeatability | ＜ 50°/h（ 1σ） | |
| Scale factor non-linearity | ≤ 100ppm（ 1σ） | |
| Scale factor repeatability | ≤ 100ppm（ 1σ） | |
| Bandwidth | 100Hz | |
| Accelerometer | Range: X, Y, Z | ± 3.6g |
| Resolution | 0.01mg | |
| Accelerometer zero offset | 0.15mg | |
| Zero bias stability | 0.001mg（ 25℃， 100s， 1σ） 0.01mg（ 25℃， 10s， 1σ） |
| Application | |
● Unmanned ships and underwater robots ● Construction machinery ● Stable platform ● AGV unmanned guided vehicle | ● Heavy duty truck ● Unmanned drive ● Robots ●Unmanned aircrafts |

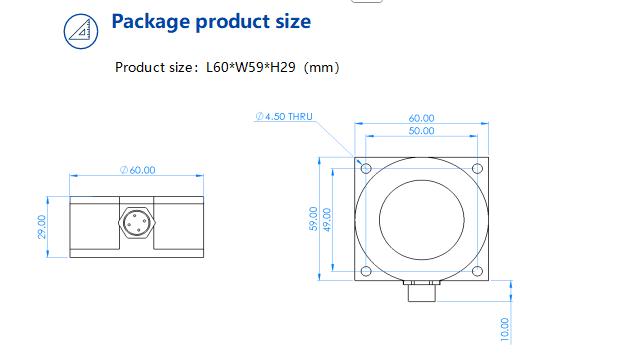

Product Size
-
