Electronic compass
BWSENSING Tilt compensation 3D electronic compass LEC310
BWSENSING Tilt compensation 3D electronic compass LEC310

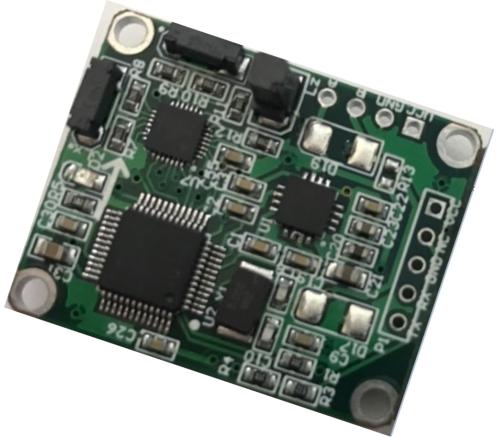

LEC310 BWSENSING Tilt compensation 3D electronic compass LEC310 Product Introduction:

LEC315 is a high-precision three-dimensional electronic compass, using patented three-dimensional compensation technology, so that the product tilt ±30 degrees tilt angle, still can provide accurate heading data.

Shared:

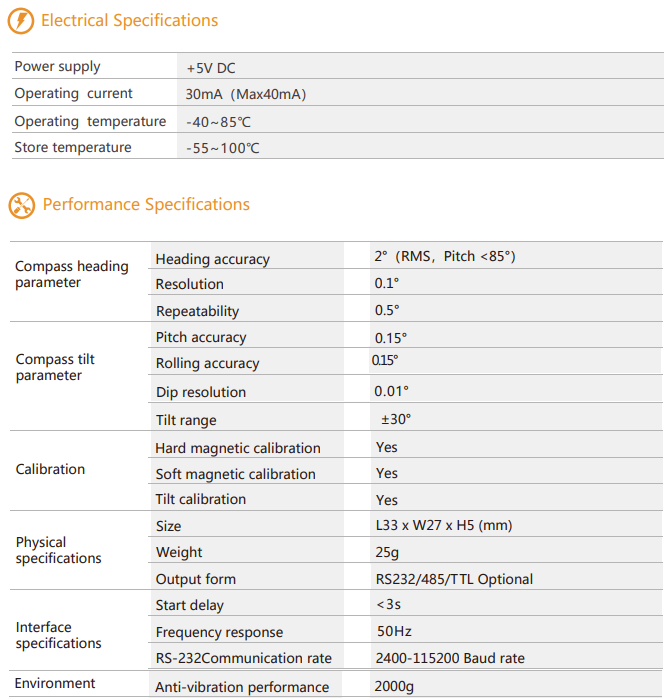

Technical Specifications

Heading Accuracy

Pitch Accuracy0.15º

Roll Accuracy0.15º

Voltage5V DC

Output ModeRS232/RS485/TTL Optional, Modbus Optional

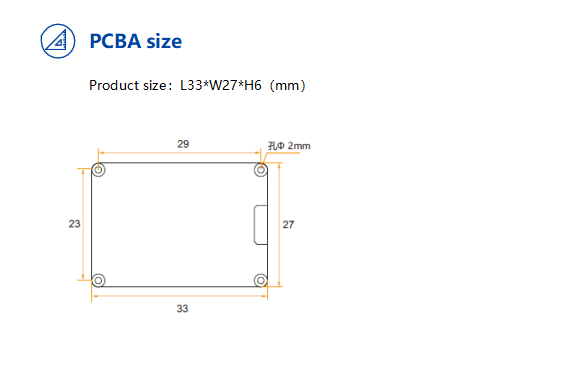

Dimension:  33×27×5mm

Protection Level: IP67


Product Advantages
1522039676218109.png Accuracy1522110325448404.png Resolution
0.15°(pitch)  0.15°(roll)N/A


1522039614484057.png Measuring range1522039632548392.png Broad temperature range
N/A-40℃~+85℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥90000 hoursIP67
