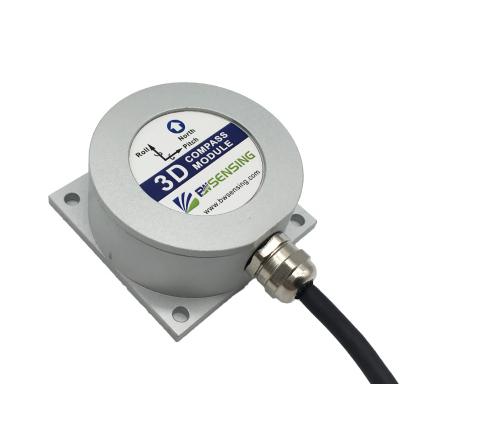

BWSENSING Angle Compensation 3D Compass SEC385
BWSENSING Angle Compensation 3D Compass SEC385
SEC385 BWSENSING Angle Compensation 3D Compass SEC385 Product Introduction:

● Accuracy:0.5°(RMS)
● -40℃~+85℃ wide temperature work
● Small size:L60 x W59 x H29 (mm)
● Power supply:9-36V
● Resolution:0.1°
● Roll/ pitch accuracy:0.1°
● With hard magnetic, soft magnetic and tilt compensation
● RS232/RS485/TTL Output opti

Shared:

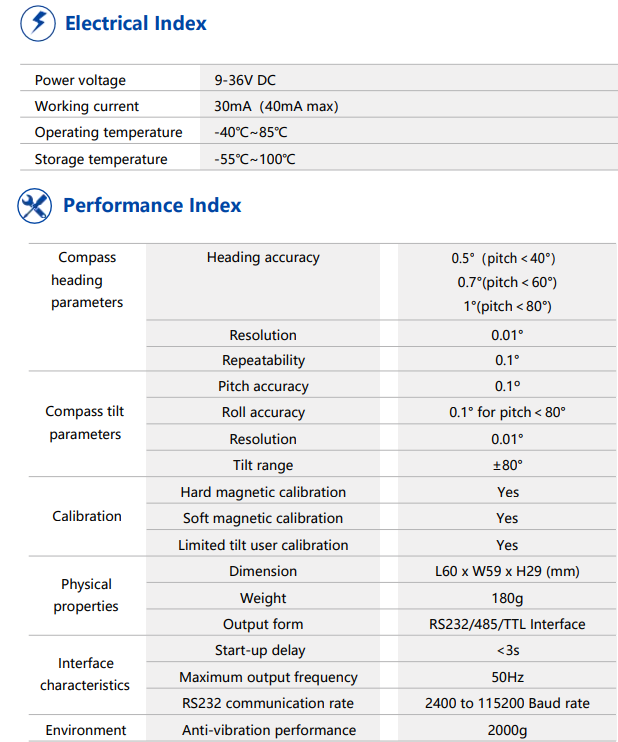

Technical Specifications

Performance Index

Compass

heading parameters

Heading accuracy


0.5°(pitch<40°)

0.7°(pitch<60°)

1°(pitch<80°)

Resolution


0.01°

Repeatability


0.1°



Compass tilt parameters

Pitch accuracy


0.1º

Roll accuracy


0.1° for pitch<80°

Resolution


0.01°

Tilt range


±80°



Calibration

Hard magnetic calibration


Yes

Soft magnetic calibration


Yes

Limited tilt user calibration


Yes



Physical properties

Dimension


L60 x W59 x H29 (mm)

Weight


180g

Output form


RS232/485/TTL Interface



Interface characteristics

Start-up delay


<3s

Maximum output frequency


50Hz

RS232 communication rate


2400 to 115200 Baud rate

Environment

Anti-vibration performance


2000g

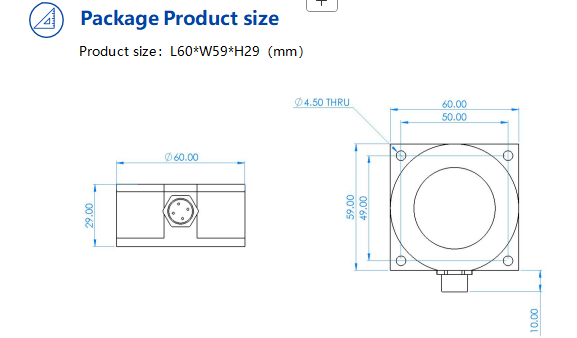

Product Size
