VG100C

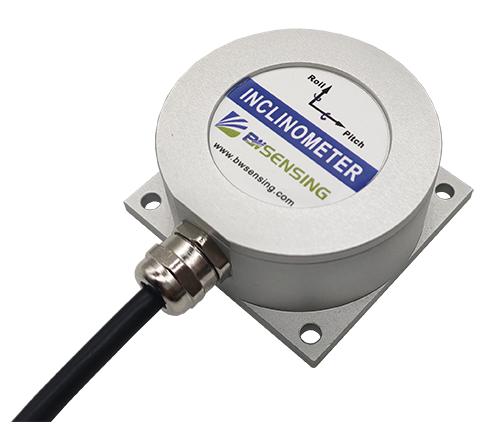

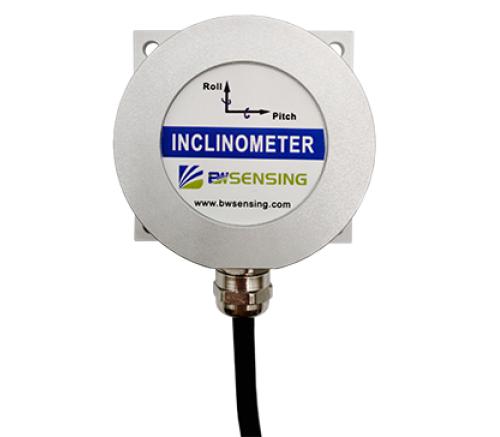

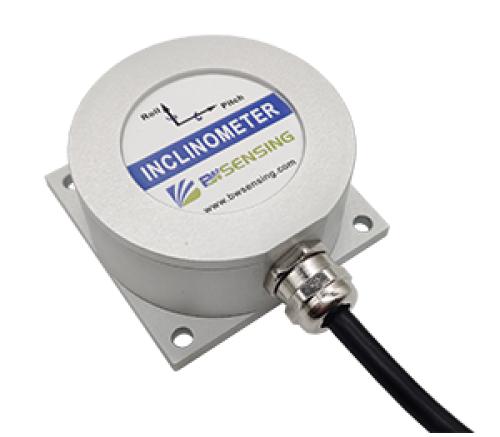

BWSENSIG High-precision dynamic inclinometer VG100C
Product Introduction：
The VG100C Dynamic Inclinometer is a high precision inclinometer that measures the attitude parameters (roll and pitch) of the motion carrier.
Shared：

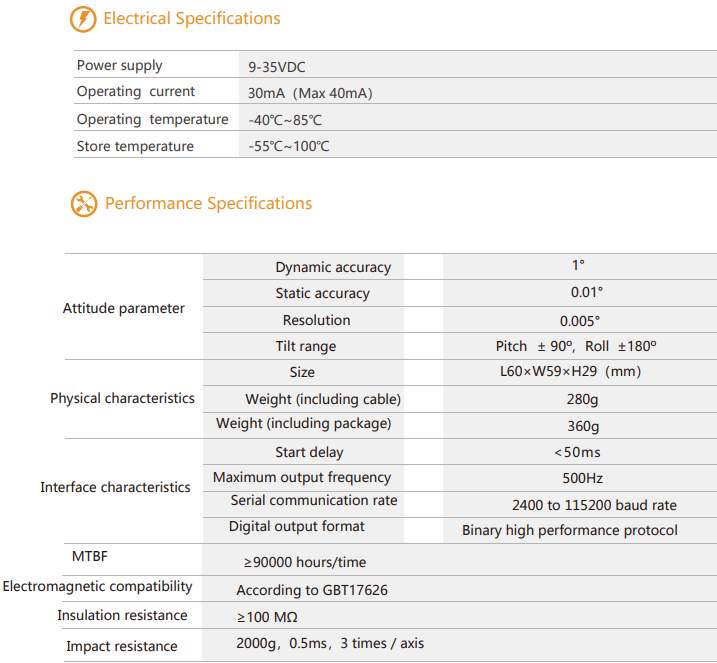

Technical Specifications
 Dynamic accuracy | Static accuracy |
| 1° | 0.01° |
 Measuring range |  Resolution |
| Pitch ± 90°，Roll ± 180° | ±0.001°/℃ |
 MTBF |  Protection class |
| ≥90000 hours | IP67 |
Product Size
| Dynamic accuracy | Static accuracy |
| 1° | 0.01° |
| Measuring range | Resolution |
| Pitch ± 90°，Roll ± 180° | ±0.001°/℃ |
| MTBF | Protection class |
| ≥90000 hours | IP67 |
-
