BWSENSING High-precision dynamic inclinometer for tilt measurement in motion or vibration.
BWSENSING High-precision dynamic inclinometer for tilt measurement in motion or vibration.

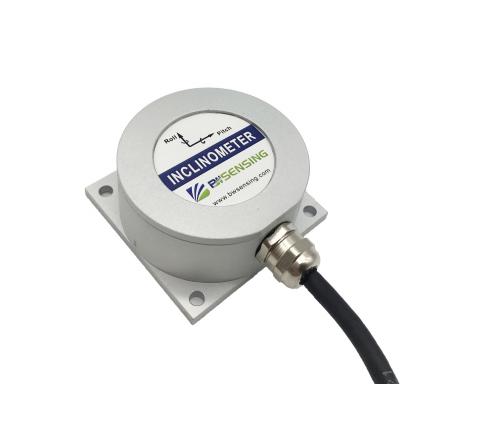

VG400C BWSENSING High-precision dynamic inclinometer for tilt measurement in motion or vibration. Product Introduction：

BW-VG400C dynamic dip sensor is a high performance inertial measurement device which can measure the attitude parameters of the moving carrier (roll and pitch).

Shared：

Technical Specifications Product Size   Video Tutorials Relevant Solutions

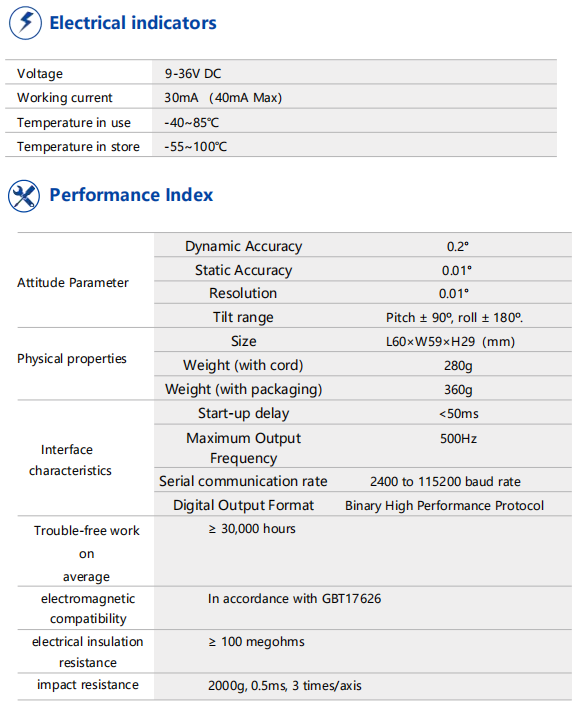

Technical Specifications
1522039676218109.png Dynamic accuracy1522039676218109.png Static accuracy
0.2°0.01°


1522039614484057.png Measuring range1522110325448404.png Resolution
Pitch ± 90°，Roll ± 180°±0.001°/℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥90000 hoursIP67

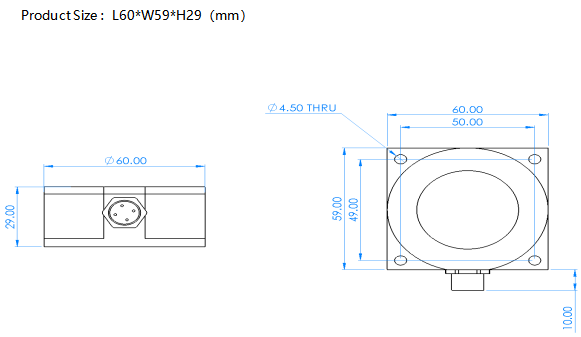

Product Size
1522039676218109.png Dynamic accuracy1522039676218109.png Static accuracy
0.2°0.01°


1522039614484057.png Measuring range1522110325448404.png Resolution
Pitch ± 90°，Roll ± 180°±0.001°/℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥90000 hoursIP67
