Inclinometer

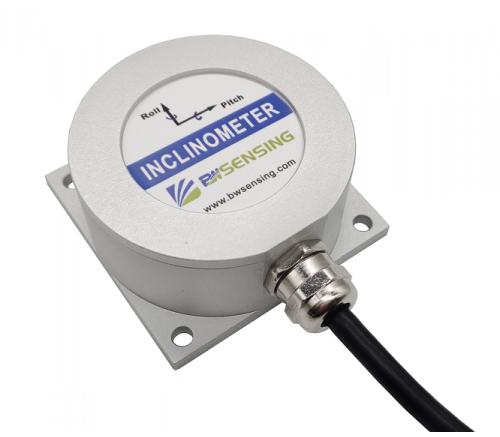

BWSENSIG High Precision Modbus Dynamic Inclinometer BW-VG427C
BWSENSIG High Precision Modbus Dynamic Inclinometer BW-VG427C
VG427C BWSENSIG High Precision Modbus Dynamic Inclinometer BW-VG427C Product Introduction:

BW-VG427C dynamic dip sensor is a high performance inertial measurement device which can measure the attitude parameters of the moving carrier (roll and pitch).

Shared:

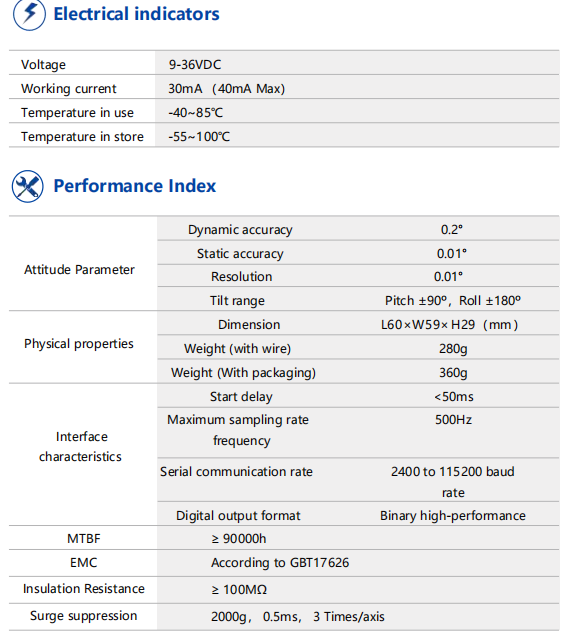

Technical Specifications
1522039676218109.png Accuracy1522110325448404.png Resolution
0.3°(dynamic)  0.1°(static)0.001°


1522039614484057.png Measuring range1522039632548392.png Broad temperature range
±90°(pitch)  ±180°(roll)-40℃~+85℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥90000 hoursIP67


Product Advantages
1522039676218109.png Accuracy1522110325448404.png Resolution
0.3°(dynamic)  0.1°(static)0.001°


1522039614484057.png Measuring range1522039632548392.png Broad temperature range
±90°(pitch)  ±180°(roll)-40℃~+85℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥90000 hoursIP67
