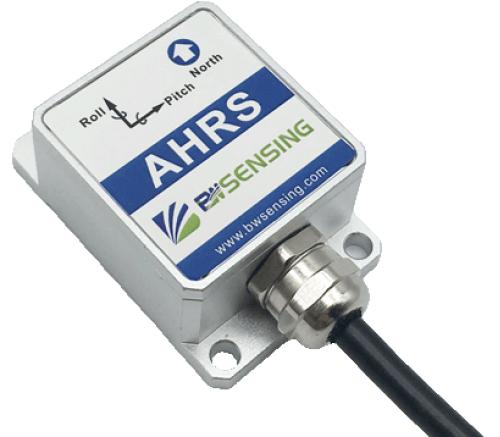

BWSENSING Ultra-low cost Digital Output Attitude and Heading Reference System AH100
BWSENSING Ultra-low cost Digital Output Attitude and Heading Reference System AH100
AH100 BWSENSING Ultra-low cost Digital Output Attitude and Heading Reference System AH100 Product Introduction:

●Non-linear compensation, quadrature compensation
●Dynamic static measurement
●Special offset tracking algorithm eliminates drift
●Gyro drift compensation
●Output RS232/RS485/TTL optional
●Wide temperature range:-40℃~+85℃,
●Temperature compensati

Shared:

Technical Specifications

Power voltage

5V DC

Working current

30mA (40mA max)

Operating temperature

-40~85℃

Storage temperature

-55~100℃



Attitude parameters

Pitch accuracy


3°(RMS, dynamic)

0.5°(RMS, static)

Roll accuracy


3°(RMS, dynamic)

0.5°(RMS, static)

Resolution


0.01°

Tilt range


Pitch± 90º,Roll±180º

Heading parameters

Heading accuracy


Resolution


0.01°



Physical characteristics

Dimension


L55 x W37 x H24(mm)

Weight (with cable)


60g

Output mode


RS232/RS485/TTL





Interface characteristics

Start-up delay


<3s

Maximum output frequency


100Hz

Serial communication rate


2400 to115200 Baud rate

Digital output format


Binary high-performance protocol

Environment

Impact resistance


2000g

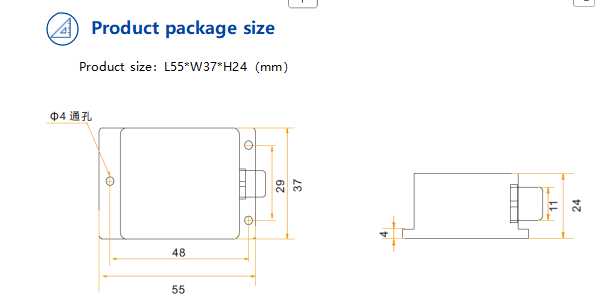

Product Size
