BWSENSING High-cost-effective Attitude and Heading Reference System AH300
BWSENSING High-cost-effective Attitude and Heading Reference System AH300

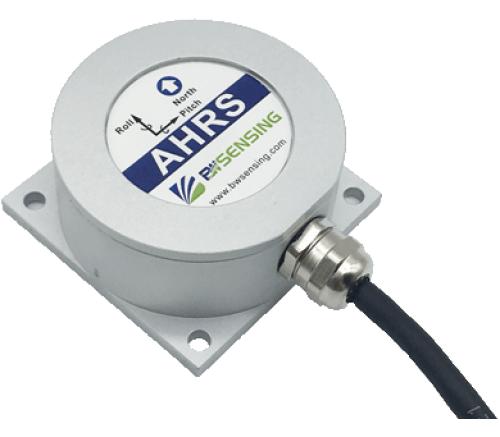

AH300 BWSENSING High-cost-effective Attitude and Heading Reference System AH300 Product Introduction:

AH300 Attitude and Heading Reference System (AHRS) is a high performance and ultra low cost inertial equipment, for measurement of attitude parameters (roll & pitch), angular rate, acceleration and course angle of dynamic carrier.

Shared:

Technical Specifications

Power supply

9-36V DC

Working current

30mA (40mA max)

Operating temperature

-40~85℃

Storage temperature

-55~100℃







Attitude parameter

Pitch/Roll accuracy

0.3°

Heading accuracy

0.5°

Tilt range

Pitch±90º,Roll±180º







Gyro

Resolution

0.01°/sec

Range

±400°/sec

Bias stability at full temperature

15°/h(10s,1σ)

Angle random walk coefficient

0.1 °/√h

Scale factor non-linearity

≤100ppm(1σ)

Scale factor repeatability

≤100ppm(1σ)

Bandwidth

100Hz



Accelerometer

Range:X, Y, Z

±3.6 g

Bias stability

0.001mg(25℃,100s,1σ

Interface

characteristics

Communication mode

RS232/RS485/TLL

Maximum output frequency

100Hz

MTBF

≥90000 h/times

EMC

According to GBT17626

Insulation resistance

≥100 MΩ

Impact resistance

2000g,0.5ms,3times/axis

Weight(with cable)

280g

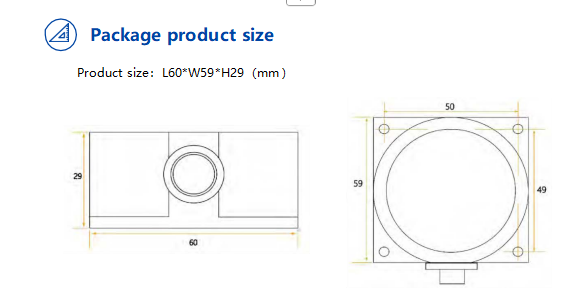

Product Size
