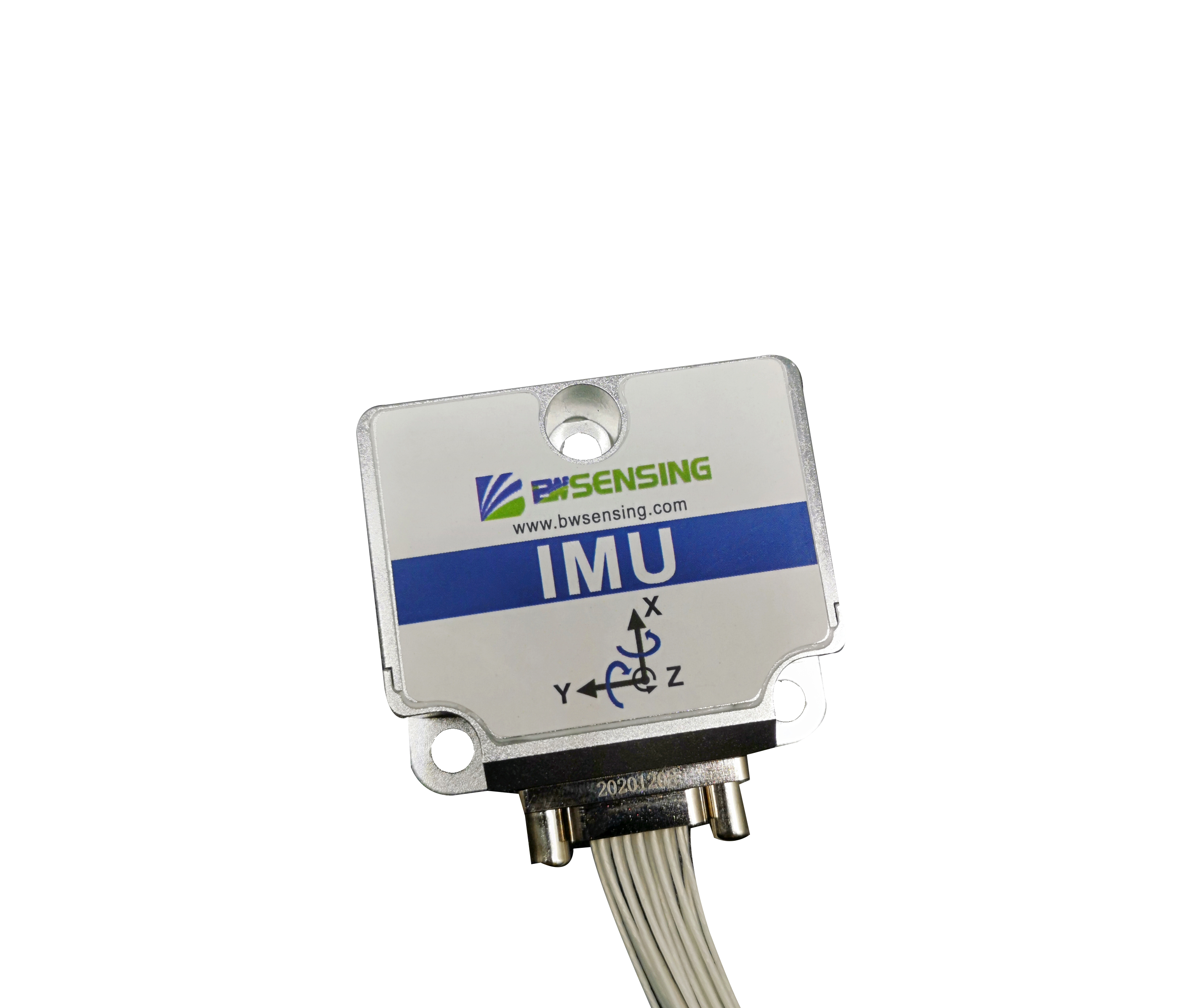

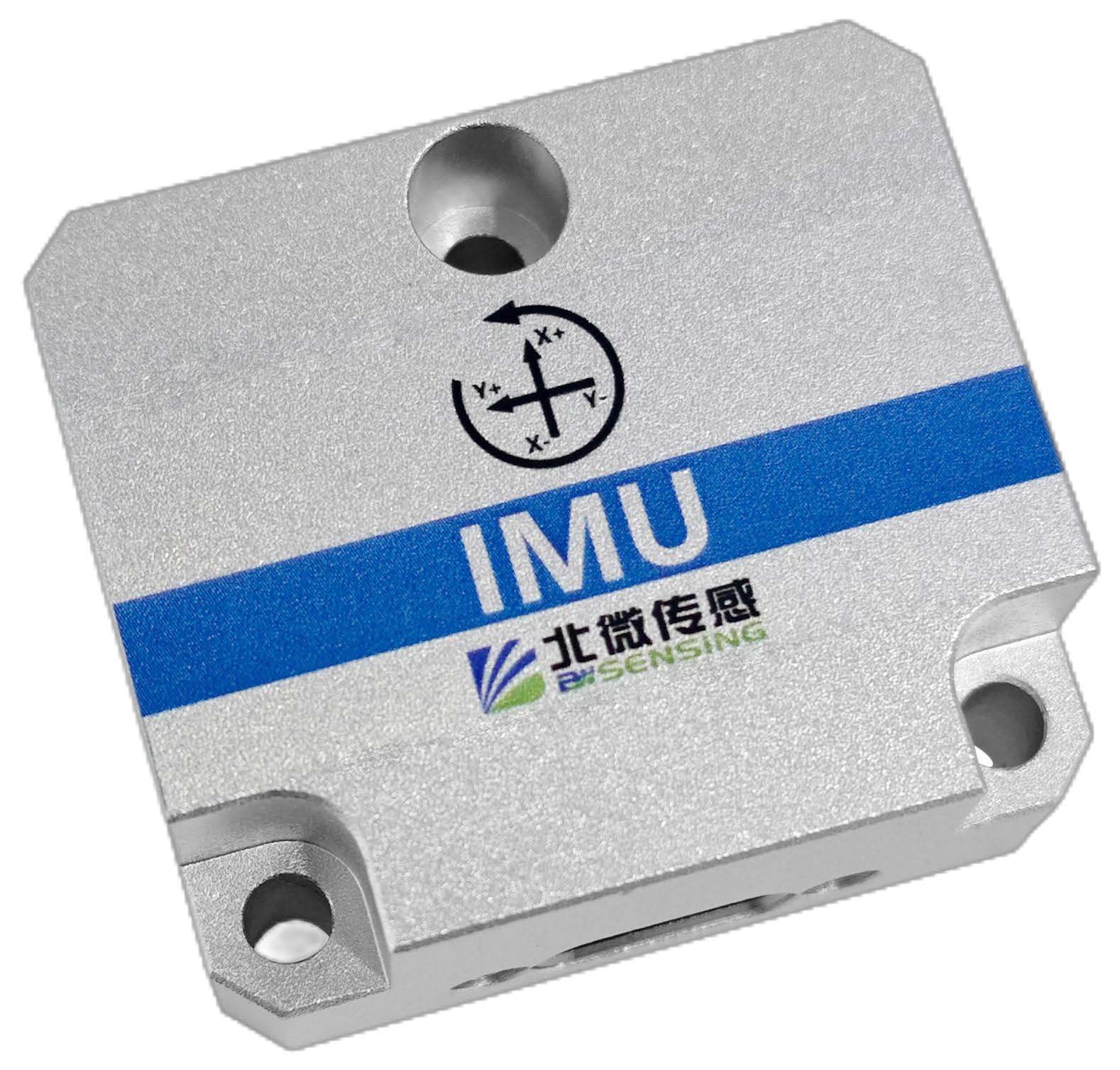

BW-IMU620 is a large-range and high-performance inertial measurement unit, which can measure the angular velocity and acceleration of the carrier's motion parameters, with a built-in large-range accelerometer and high-stability gyroscope.
Shared：
gyros | Range (deg/s) | ±400 | |
Normal temperature stability (10S smoothing) (deg/h) | ≤15 | ||
Angular random wander (deg/h^0.5) | ≤0.001 | ||
≤0.05 | |||
Zero bias instability (deg/h) | ≤0.01 | ||
accelerometer | Angular rate wander (deg/h/h^0.5) | ±10 ±20 ±40可选 | |
Range (g) | ≤0.1 | ||
Zero bias stability (10S smoothing) (mg) | ≤0.01 | ||
Velocity random wander (m/s/s^0.5) | ≤0.01 | ||
Zero bias instability (m/s^2) | ≤0.05 | ||
systems | Acceleration wander (m/s^2/s^0.5) | 2000 | |
Shock resistance (g) | 20 |
Connector | J30J-15TJL (30cm) |
Protection Level | IP65 |
Shell material | Magnesium alloy sanding oxidation |
Installation | Three M4 screws |
● Quadrature compensation ● Gyroscope range: ±400°/s
● Accelerometer range: ±20g ● RS422 interface output

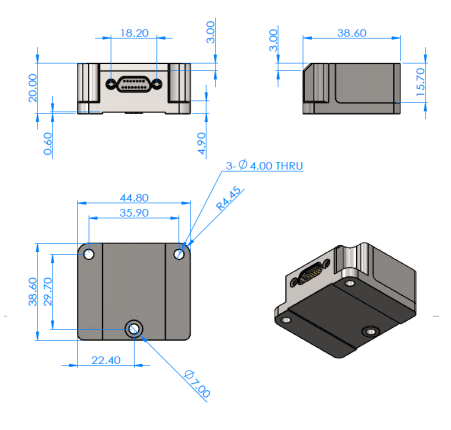

● Wide temperature range: -40℃~+85℃, temperature compensation ● Volume and shape: L44.8 * W38.6 * H20mm
● Pipeline survey engineering ● Model attitude angle measurement
● Platform stabilisation ● Self-driving navigation platforms
● Underwater robotic navigation ● Unmanned aerial vehicles
-
