7KP

20KPa

40KPa

Accuracy

0.025%FS

0.05%FS

0.1%FS

Zero Point Offset

＜ 0.05 %FS

Temperature zero return   difference（42h）

0.02uV/V

Over pressure   performance

2MPa

Physical Characteristics

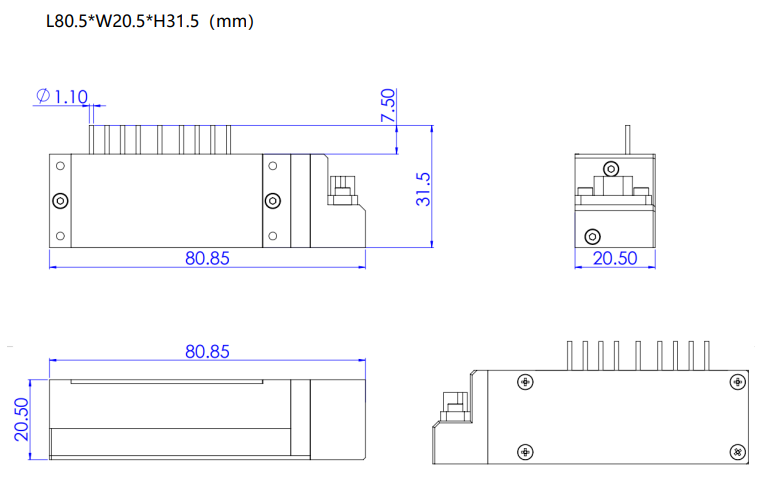

Size

L80.5*W20.5*H31.5（mm）

Net   Weight

90g

Interface

Output   Frequency

5~200Hz

Baud   rate of serial communication

921600

Digital   output format

ASCII

Pressure Chip Test Stability

 Load Static pressure Characteristic

≤ 0.03 ±%FS/10MPa

Long-term   Stability

（1000h，135℃）

±5uV/V

Nonlinearity

≤ 0.3±%FS

MTBF

≥900 hs/time

Working   Temperature

-10℃～+60℃
