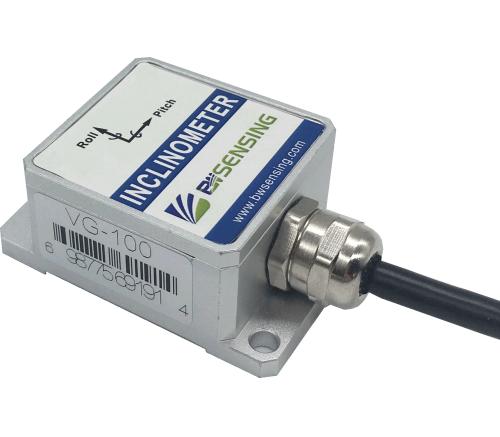

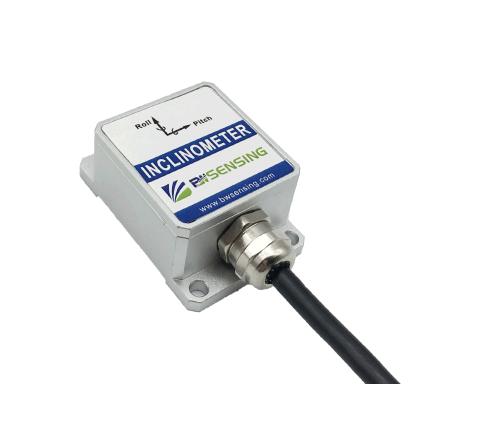

BW-VG100 BWSENSING Ultra-low cost Digital Dynamic Inclinometer BW-VG100 Product Introduction:

BW-VG100 Dynamic Inclinometer is a cost-effective tilt measurement device used for measuring the the posture parameters of moving objects(roll and pitch).

Shared:

Technical Specifications

Dynamic accuracy: 2°

Static accuracy: 0.2°

Tilt margin: Pitch ± 90º, Roll  ±180º

Supply Voltage: 5V DC

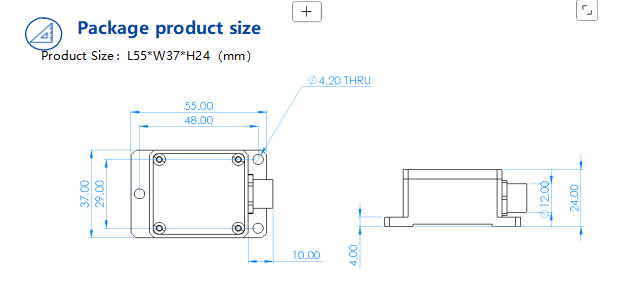

Dimension: L55 x W37 x H24 (mm)

Vibration resistance: 2000g

Broad temperature range: -40℃~+85℃

Waterproof level: IP67


Product Advantages
1522039676218109.png Accuracy1522110325448404.png Resolution
2°(dynamic)  0.2°(static)0.01°


1522039614484057.png Measuring range1522039632548392.png Broad temperature range
±90°(pitch)  ±180°(roll)-40℃~+85℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥90000 hoursIP67
