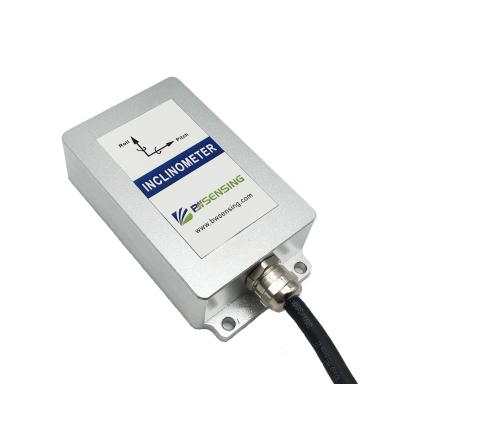

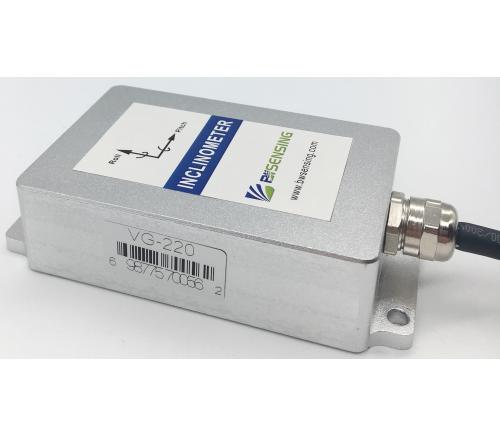

BW-VG220 BWSENSING Low-cost Voltage Dynamic Inclinometer BW-VG220 Product Introduction:

● Non-linear compensation,quadrature compensation
● Dynamic and static measurement
● Gyro drift compensation
● Special offset tracking algorithm to eliminate drift
● Power supply:12-36V
● Wide temperature range:-40℃~+85℃
● High-performance Kalman

Shared:

Technical Specifications

Electrical indicators

Parameters

Condition


Minimum


Typical value


Maximum

Voltage (V)



12




36

Working current(mA)

No load


20


50


60

Output load (kΩ)

Resistive


10





Output load (nF)

Capacitive






20

Operating temperature



-40




85

Storage temperature(℃)



-55




100

Performance Index





Attitude Parameter

Dynamic Accuracy


0.5°

Static Accuracy


0.01°

Resolution


0.01°

Tilt range


Pitch ± 90º, Roll ± 180º



Physical properties

Dimension


L103.8×W55.4×H26(mm)

Weight (with cable)


320g

Weight (with package)


400g





Interface characteristics

Voltage Output Range (v)


 (0-5 optional) (0-10 optional)

Startup Delay


<50ms

Serial Communication Rate


2400 to 115200 baud rate

Digital Output Format


Binary High Performance Protocol

Mean Time Between Failure (MTBF)

≥90,000 hours

Electromagnetic compatibility

According to GBT17626

Insulation resistance

≥100MΩ

Shock resistance

2000g, 0.5ms, 3 times/axis

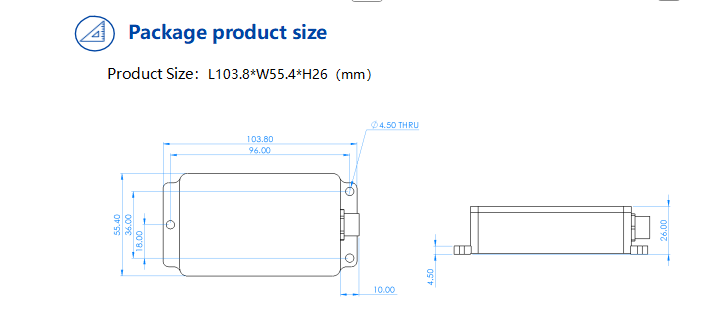

Product Size
