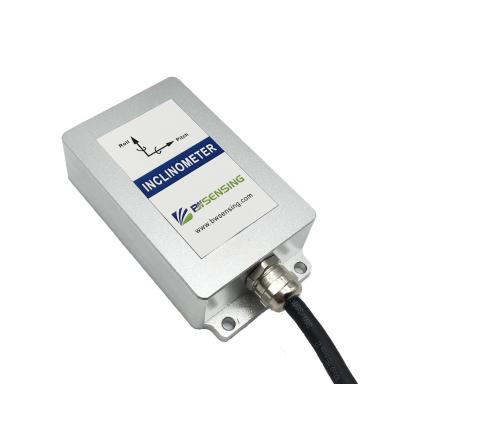

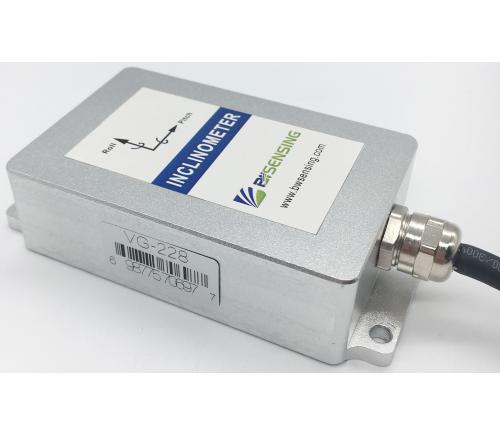

BWSENSING Low-cost Current Dynamic Inclinometer BW-VG228
BWSENSING Low-cost Current Dynamic Inclinometer BW-VG228
BWSENSING Low-cost Current Dynamic Inclinometer BW-VG228
BWSENSING Low-cost Current Dynamic Inclinometer BW-VG228
BW-VG228 BWSENSING Low-cost Current Dynamic Inclinometer BW-VG228 Product Introduction:

● Non-linear compensation,quadrature compensation
● Dynamic and static measurement
● Gyro drift compensation
● Special offset tracking algorithm to eliminate drift
● 0-20mA/4-20mA/0-24m Acurrent output optional
● Wide temperature range:-40℃~+85℃

Shared:

Technical Specifications

Electrical indicators

Parameters

Condition


Minimum


Typical value


Maximum

Voltage (V)



12




36

Working current(mA)

No load


20


50


60

Output load (Ω)



0




500

Operating temperature



-40




85

Storage temperature(℃)



-55




100

Performance Index



Attitude Parameter

Dynamic accuracy


0.5°

Static accuracy


0.01°

Resolution


0.01°

Tilt margin


Pitch±90º,Roll±180º



Physical properties

Dimension


L103.8 x W55.4 x H26(mm)

Weight (with wire)


320g

Weight (With packaging)


400g





Interface characteristics

Range of output current (mA)


4-20 (optional) (0-20 optional) (0-24 optional)

Start delay


<50ms

Serial communication rate


2400 to115200 bps

Digital output format


Binary high-performance protocol

Trouble-free work on

average

≥90000 hours

EMC

According to GBT17626

Insulation Resistance

≥100 MΩ

Surge suppression

2000g, 0.5ms, 3 Times/axis

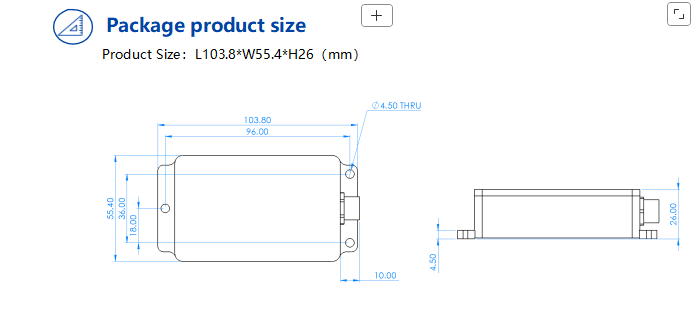

Product Size
