● Non-linear compensation,quadrature compensation
● Dynamic and static measurement
● Gyro drift compensation
● Special offset tracking algorithm to eliminate drift
● RS232/485/TTL interface output optional
● Wide temperature range:-40℃~+85℃
● Hig
Performance Index
Attitude Parameter | Dynamic Accuracy | 0.3° |
Static Accuracy | 0.01° | |
Resolution | 0.01° | |
Tilt range | Pitch ± 90º, Roll ± 180º | |

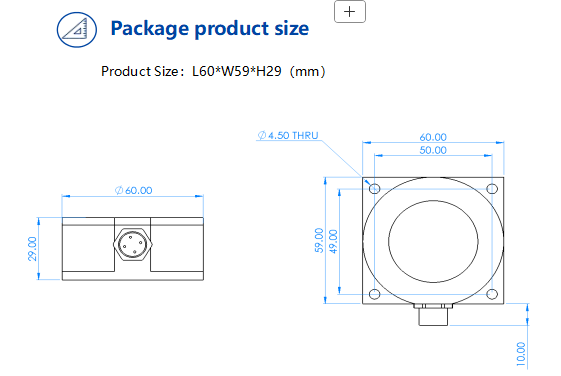

Physical properties | Dimension | L60×W59×H29(mm) |
Weight (with cable) | 280g | |
Weight (with package) | 360g | |
Interface characteristics | Communication method | RS232/RS485/TLL |
Start-up delay | <50ms | |
Maximum Output Frequency | 500Hz | |
Serial communication rate | 2400 to 115200 baud rate | |
Digital Output Format | Binary High Performance Protocol | |
Trouble-free work on average | ≥ 90,000 hours | |
EMC | In accordance with GBT17626 | |
Insulation Resistance | ≥ 100 megohms | |
Surge suppression | 2000g, 0.5ms, 3 times/axis |
