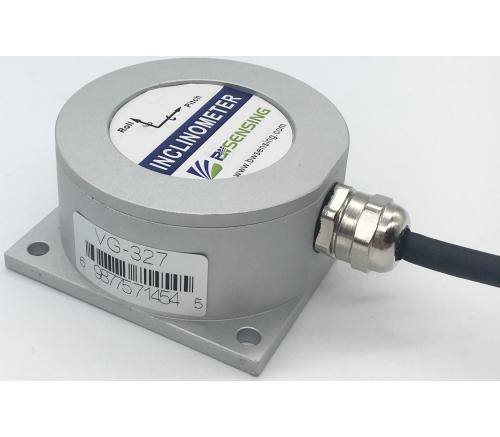

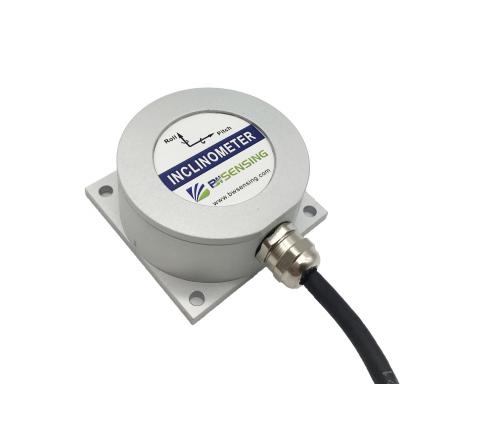

BWSENSING High-cost-effective Modbus Dynamic  Inclinometer BW-VG327
BWSENSING High-cost-effective Modbus Dynamic  Inclinometer BW-VG327
BWSENSING High-cost-effective Modbus Dynamic  Inclinometer BW-VG327
BWSENSING High-cost-effective Modbus Dynamic  Inclinometer BW-VG327
BW-VG327 BWSENSING High-cost-effective Modbus Dynamic Inclinometer BW-VG327 Product Introduction:

● Non-linear compensation,quadrature compensation
● Dynamic and static measurement
● Gyro drift compensation
● Special offset tracking algorithm to eliminate drift
● RS232/485/TTL output optional
● Wide temperature range:-40℃~+85℃
● High-performa

Shared:

Technical Specifications

Performance Index

Attitude Parameter

Dynamic Accuracy

0.3°

Static Accuracy

0.01°

Resolution

0.01°

Tilt range

Pitch ± 90º, roll ± 180º.



Physical properties

Dimension

L60×W59×H29(mm)

Weight (with cable)

280g

Weight (with package)

360g



Interface characteristics

Start-up delay

<50ms

Maximum Output Frequency

100Hz

Serial Communication Rate

2400 to 115200 baud rate

Digital Output Format

Binary High Performance Protocol

Average Trouble-Free Operating Time

≥ 90,000 hours

electromagnetic compatibility

In accordance with GBT17626

electrical insulation resistance

≥ 100 megohms

impact resistance

2000g, 0.5ms, 3 times/axis

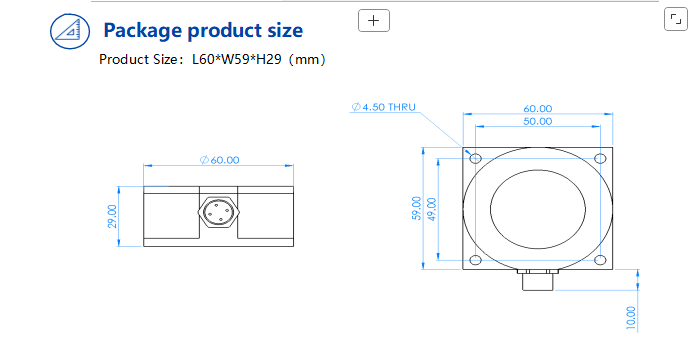

Product Size
