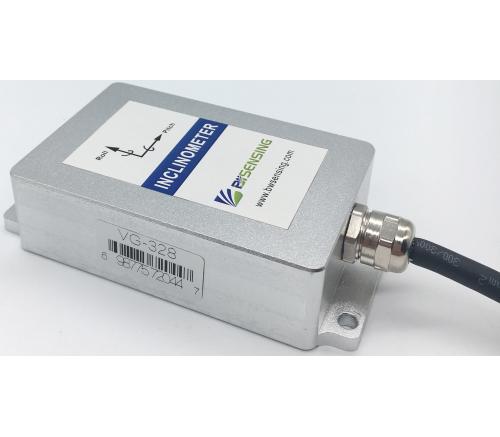

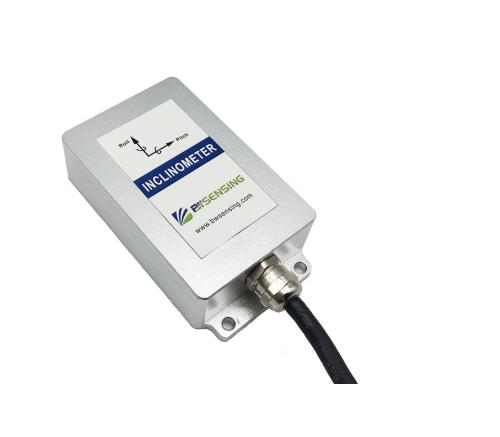

BWSENSING High-cost-effective Current Dynamic  Inclinometer BW-VG328
BWSENSING High-cost-effective Current Dynamic  Inclinometer BW-VG328
BWSENSING High-cost-effective Current Dynamic  Inclinometer BW-VG328
BWSENSING High-cost-effective Current Dynamic  Inclinometer BW-VG328
BW-VG328 BWSENSING High-cost-effective Current Dynamic Inclinometer BW-VG328 Product Introduction:

● Non-linear compensation,quadrature compensation
● Dynamic and static measurement
● Gyro drift compensation
● Special offset tracking algorithm to eliminate drift
● 0-20mA/4-20mA/0-24mA output for optional
● Wide temperature range:-40℃~+85℃
● Hi

Shared:

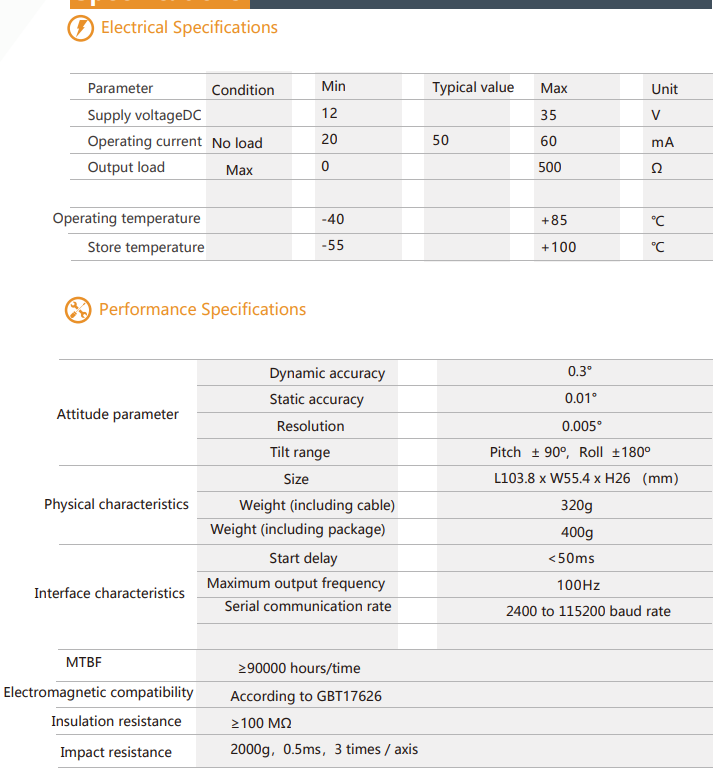

Technical Specifications

Electrical indicators

Parameters

Condition


Minimum


Typical value


Maximum

Voltage (V)



 12




36

Working current(mA)

No load


  20


50


60

Output load (Ω)



  0




500

Operating temperature



-40




85

Storage temperature(℃)



-55




100

Performance Index




Attitude Parameter

Dynamic accuracy


0.3°

Static accuracy


0.01°

Resolution


0.01°

Tilt range


Pitch ± 90º, roll ± 180º.



Physical properties


             Size


L103.8×W55.4×H26(mm)

Dimension


320g

Weight (with wire


400g





Interface characteristics

Weight (With packaging)


(4-20 optional) (0-20 optional) (0-24 optional)

Startup Delay


<50ms

Serial communication rate


2400 to 115200 baud rates

Digital Output Format


Binary High Performance Protocol

Average Trouble-Free Operating Time

≥90,000 hours

electromagnetic compatibility

In accordance with GBT17626

electrical insulation resistance

≥100 megohms

impact resistance

2000g, 0.5ms, 3 times/axis

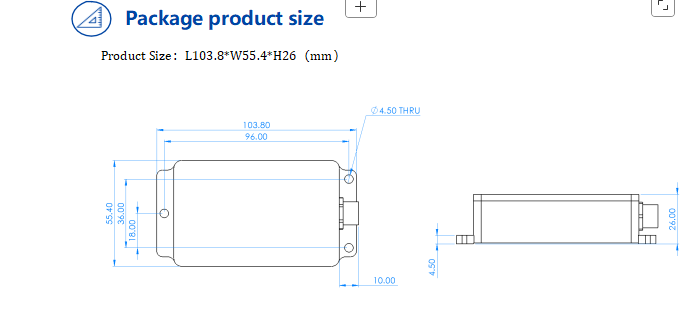

Product Size
