BW-VG520 BWSENSING High precision Voltage Dynamic Inclinometer BW-VG520 Product Introduction：

BW-VG520 dynamic dip sensor is a high performance inertial measurement device which can measure the attitude parameters of the moving carrier (roll and pitch).

Shared：

Technical Specifications Product Size   Video Tutorials Relevant Solutions

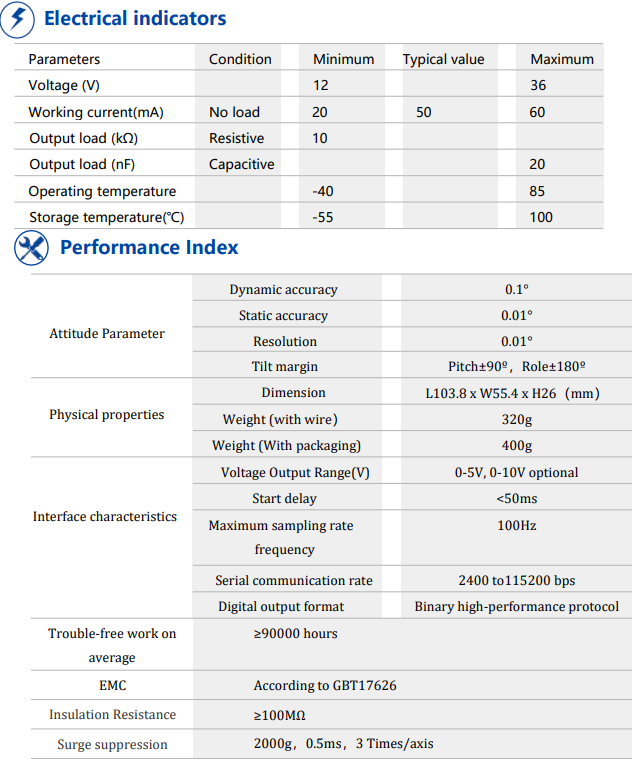

Technical Specifications
1522039676218109.png Accuracy1522110325448404.png Resolution
0.1°(dynamic)  0.01°（static)0.01°


1522039614484057.png Measuring range1522039632548392.png Broad temperature range
±90°(pitch)  ±180°（roll)-40℃～+85℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥90000 hoursIP67

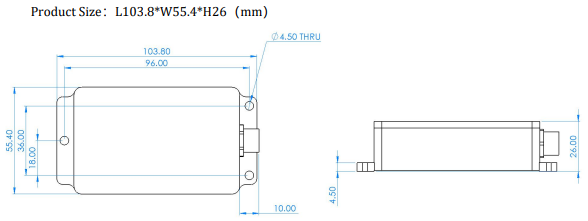

Product Size
1522039676218109.png Accuracy1522110325448404.png Resolution
0.1°(dynamic)  0.01°（static)0.01°


1522039614484057.png Measuring range1522039632548392.png Broad temperature range
±90°(pitch)  ±180°（roll)-40℃～+85℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥90000 hoursIP67
