BWSENSING High-precision Voltage Output  Single-axis Inclinometer BWH510
BWSENSING High-precision Voltage Output  Single-axis Inclinometer BWH510

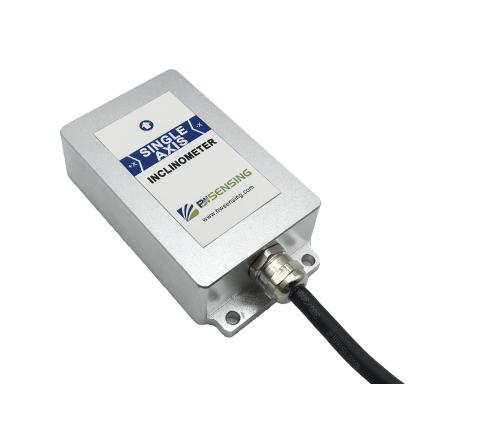

BWH510 BWSENSING High-precision Voltage Output Single-axis Inclinometer BWH510 Product Introduction:

BWH510 is a high-precision voltage output type single axis tilt sensor.The products are small in size and good in shock and vibration. It is especially suitable for underground trenchless machines and other harsh industrial environments.

Shared:

Technical Specifications

Accuracy: 0.003°

Resolution: 0.0007°

Protection Level: IP67

Measuring Axis: X axis

Measuring Range: ± 30°

Power Supply DC: 10-35V

Output Mode: voltage (0-5V, 0-10V) mode output

Shock Resistance: > 2000g

Operating Temperature: -40℃ ~ +85℃

Store Temperature: -55 C ~+100 C

Zero Temperature Drift (-40℃ ~ 85℃): ± 0.0007 °/℃


Product Advantages
1522039676218109.png Accuracy1522110325448404.png Resolution
0.003°0.0007°


1522039614484057.png Measuring range1522039632548392.png Zero temperature drift
±30°±0.0007°/℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥90000 hoursIP67
