BWSENSIG Can Dual-axis Inclinometer BWH525
BWSENSIG Can Dual-axis Inclinometer BWH525

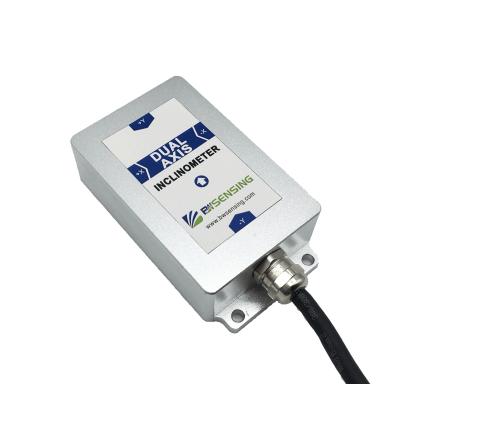

BWH525 BWSENSIG Can Dual-axis Inclinometer BWH525 Product Introduction:

BWH525-CAN is a CAN output type double-axis Inclinometer. The products are small in size and good in shock and vibration. It is especially suitable for underground trenchless machines and other harsh industrial environments.

Shared:

Technical Specifications

Accuracy: 0.003°

Resolution: 0.0007°

Protection Level: IP67

Measuring Axis: X axis

Measuring Range: ± 30°

Power Supply DC: 10-35V

Output Mode: Can Bus

Shock Resistance: > 2000g

Operating Temperature: -40 ~ +85

Store Temperature: -55 ~+100

Zero Temperature Drift (-40 ~ 85): ± 0.0007 °  /


Product Advantages
1522039676218109.png Accuracy1522110325448404.png Resolution
0.003 ° 0.0007°


1522039614484057.png Measuring range1522039632548392.png Zero temperature drift
±30°±0.0007°/℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥90000 hoursIP67
