Inclinometer

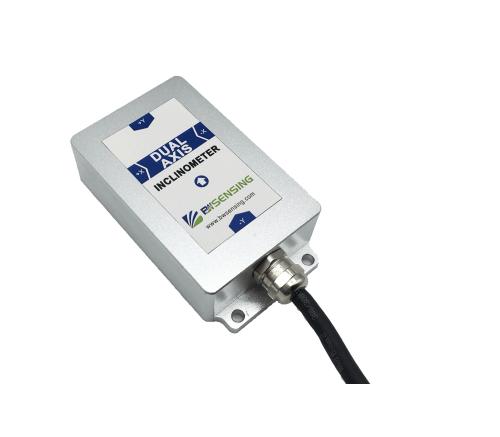

BWSENSING High-precision Digital Output  Dual-axis InclinometerBWH526
BWSENSING High-precision Digital Output  Dual-axis InclinometerBWH526
BWH526 BWSENSING High-precision Digital Output Dual-axis InclinometerBWH526 Product Introduction:

BWH 526 is the BEWIS for the field of industrial field control customized highprecision digital double-axis tilt sensor, high precision to 0.005 °. BWH 526 is suitable for use in a variety of harsh industrial control environments.

Shared:

Technical Specifications

Accuracy: 0.003°

Resolution: 0.0007°

Protection Level: IP67

Measuring Axis: X axis

Measuring Range: ± 30°

Power Supply DC: 10-35V

Output Mode: RS232, RS485, TTL optional

Shock Resistance: > 2000g

Operating Temperature: -40 ~ +85

Store Temperature: -55 ~+100

Zero Temperature Drift (-40 ~ 85): ± 0.0007 °  /


Product Advantages
1522039676218109.png Accuracy1522110325448404.png Resolution
0.003 ° 0.0007°


1522039614484057.png Measuring range1522039632548392.png Zero temperature drift
±30°±0.0007°/℃


1522039650496055.png MTBF1522039663627482.png Protection class
≥90000 hoursIP67
