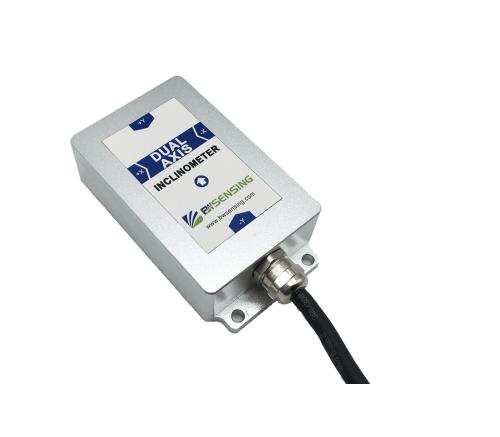

BWSENSING High-precisionCurrent Output  Dual-axis Inclinometer BWH528
BWSENSING High-precisionCurrent Output  Dual-axis Inclinometer BWH528
BWH528 BWSENSING High-precisionCurrent Output Dual-axis Inclinometer BWH528 Product Introduction:

● Range: ±30°
● Wide voltage input:12-36V
● Dual axis inclination measurement
● Output: 0-20mA/4-20mA/0-24mA(optional)
● Highest accuracy: 0.003°
● Output frequency 100Hz
● High resolution: 0.0007°
● Wide temperature work:-40℃~+85℃

Shared:

Technical Specifications

Electrical Index

Parameter

Condition


Minimum


Typical value


Maximum

Power Voltage (V)



12




36

Operating Current (mA)

No load


20


50


60

Output Load(kΩ)

Resistive


10





Operating temperature(℃)



-40




85

Storage temperature(℃)



-55




100



Performance Index

Measurement range (°)



Condition


±15


±30

Measurement axis



X-Y


X-Y

Accuracy(°)

Highest


0.003


0.005

Resolution(°)

Completely still


0.0007


0.0007

Zero bias (°/℃)

-40~85℃


±0.0007


±0.0007

Output frequency (Hz)

100

Full range output current range

4-20(0-20 optional)

(0-24 optional) mA

Mean time between failures MTBF

≥90000 hours

Electromagnetic compatibility

According to GBT17626

Insulation resistance

≥100 MΩ

Impact resistance

2000g,0.5ms,3 times/axis

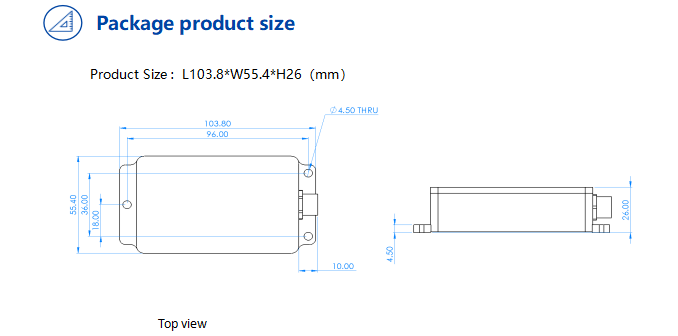

Product Size
