● Dual axis tilt measurement
● Resolution:0.02°
● Power supply:9-36V

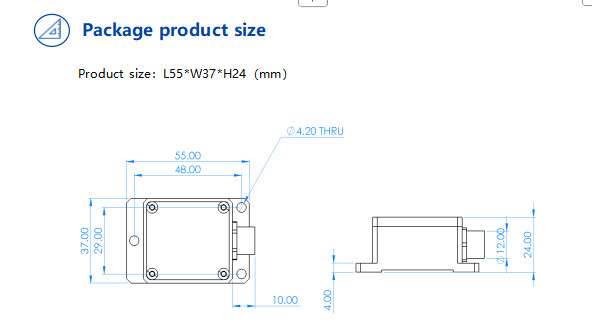

● Volume:L55*W37*H24(mm)
● Highest accuracy:0.2°
● Range:±90°
● Output:RS232/RS485/TTL for optional
● IP67 Protection level
Parameter | Condition | Minimum | Typical value | Maximum | |||
Power voltage(V) | 9 | 12 | 36 | ||||
Operating current(mA) | No load | 20 | 30 | 40 | |||
Operating temperature(℃) | -40 | 85 | |||||
Storage temperature(℃) | -55 | 100 |
Measurement Range (°)
| Condition | ±10 | ±30 | ±60 | ±90 | |||||
Measurement axis | Mutually perpendicular | X-Y | X-Y | X-Y | X-Y | |||||
Accuracy(°) | Room temperature | 0.2 | 0.2 | 0.2 | 0.2 | |||||
Resolution(°) | Completely still | 0.02 | 0.02 | 0.02 | 0.02 | |||||
Cross axis error | -40〜85℃ | 0.1 | 0.1 | 0.1 | 0.2 | |||||
Start-up time | <50ms | <50ms | <50ms | <50ms | ||||||
Output frequency (Hz) | 5-100Hz adjustable | Up to 100 | Up to 100 | Up to 100 | Up to 100 | |||||
Mean time between failures MTBF | ≥90000 h | |||||||||
Electromagnetic compatibility | According to GBT17626 | |||||||||
Insulation resistance | ≥100 MΩ | |||||||||
Impact resistance | 2000g,0.5ms,3times/ axis | |||||||||
Weight (g) | 210( Without outer packaging) |
