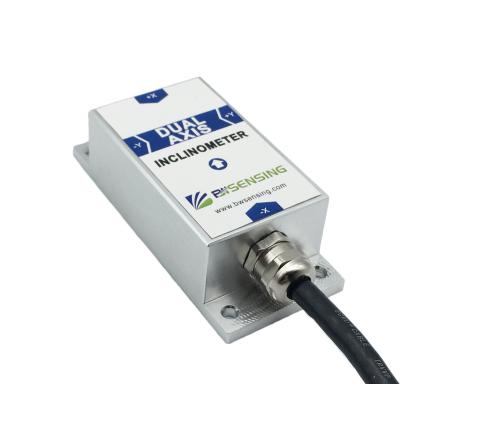

Modbus Double-axis Inclinometer BWK227
Modbus Double-axis Inclinometer BWK227
BWK227 Modbus Double-axis Inclinometer BWK227 Product Introduction:

● Dual axis tilt measurement
● Resolution:0.02°
● Power supply:9-36V
● Volume:L55*W37*H24(mm)
● Highest accuracy:0.2°
● Range:±90°
● Output:RS232/RS485/TTL for optional
● IP67 Protection level

Shared:

Technical Specifications

Parameter

Condition


Minimum


Typical value


Maximum

Power voltage(V)



9


12


36

Operating current(mA)

No load


20


30


40

Operating temperature(℃)



-40




85

Storage temperature(℃)



-55




100

Measurement Range (°)



Condition


±10


±30


±60


±90

Measurement axis

Mutually perpendicular


X-Y


X-Y


X-Y


X-Y

Accuracy(°)

Room temperature


0.2


0.2


0.2


0.2

Resolution(°)

Completely still


0.02


0.02


0.02


0.02

Cross axis error

-4085


0.1


0.1


0.1


0.2

Start-up time



50ms


50ms


50ms


50ms

Output frequency (Hz)

5-100Hz adjustable


Up to 100


Up to 100


Up to 100


Up to 100

Mean time between failures MTBF


≥90000 h

Electromagnetic compatibility


According to GBT17626



Insulation resistance


≥100





Impact resistance


2000g,0.5ms,3times/ axis



Weight (g)


210( Without outer packaging

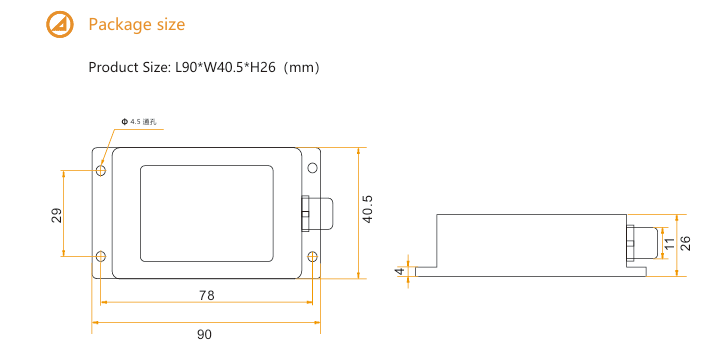

Product Size
