BWSENSING Current Output Dual-axis Inclinometer BWK228
BWSENSING Current Output Dual-axis Inclinometer BWK228
BWSENSING Current Output Dual-axis Inclinometer BWK228
BWSENSING Current Output Dual-axis Inclinometer BWK228
BWK228 BWSENSING Current Output Dual-axis Inclinometer BWK228 Product Introduction:

● Dual axis inclination measurement
● Resolution:0.02°
● Power supply:12-36V
● Size:L90*W40.5*H26(mm)
● Highest accuracy:0.2°
● Range:±90°
● Output:4-20mA/0-20mA/0-24mA optional
● IP67 protection level

Shared:

Technical Specifications

Parameter

Condition


Min


Typ


Max

Power supply(V)



12




36

Operating current(mA)

No load


20


50


60

Output load(Ω)

Max






500

Operating temperature(℃)



-40




85

Storage temperature(℃)



-55




100

Measurement Range (°)



Condition


±90

Measurement axis



X-Y

Accuracy (°)

Room temperature


0.2

Resolution (°)

Completely still


0.02

Start-up time



3s

Output frequency (Hz)

100

Current output at zero(V)

10(0-20); 12(4-20);12(0-24)

Full-scale output current range (V)

4-20 (0-20 optional) (0-24 optional)

MTBF

≥90000 h/time

EMC

According to GBT17626

Insulation resistance

≥100

Impact resistance

2000g,0.5ms,3 times/axis

Weight (g)

230(without package

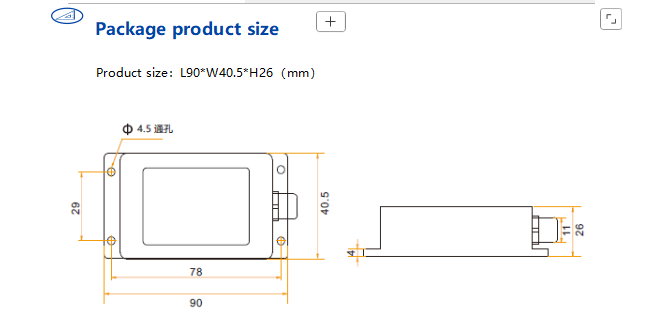

Product Size
