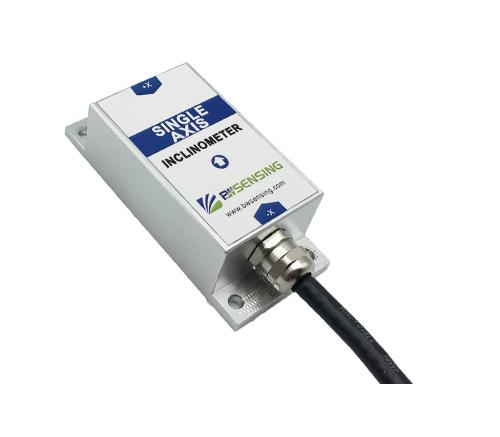

BWSENSING Single-axis Inclinometer BWL318
BWSENSING Single-axis Inclinometer BWL318
BWL318 BWSENSING Single-axis Inclinometer BWL318 Product Introduction:

● Single axis tilt measurement
● Resolution: 0.01°
● Power supply: 12-36V
● Volume: L90*W40.5*H26(mm)
● Highest accuracy :0.1°
● Range :±180°
● Output :4-20mA/0-20mA/0-24mA for optional
● IP67 protection level

Shared:

Technical Specifications

Electrical index

Parameter

Condition


Minimum


Typical value


Maximum

Power voltage(V)



12




36

Operating current(mA)

No load


20


50


60

Output load(Ω)

Max




500

Operating temperature(℃)



-40




85

Storage temperature(℃)



-55




100

Performance Index

                                    Measurement Range (°)



Condition


±180

Measurement axis



X

Accuracy(°)

Room temperature


0.1

Resolution(°)

Completely still


0.01

Start-up time



<3s

Output frequency (Hz)

5-100Hz adjustable


Up to 100

Mean time between failures MTBF

≥90000 h

Electromagnetic compatibility

According to GBT17626

Insulation resistance

≥100 MΩ

Impact resistance

2000g,0.5ms,3times/ axis

Weight (g)

210( Without outer packaging

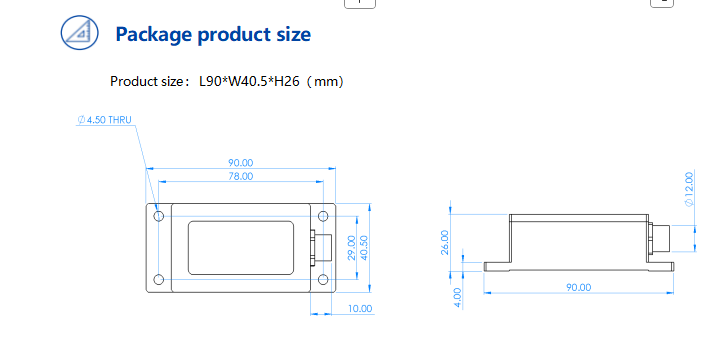

Product Size
