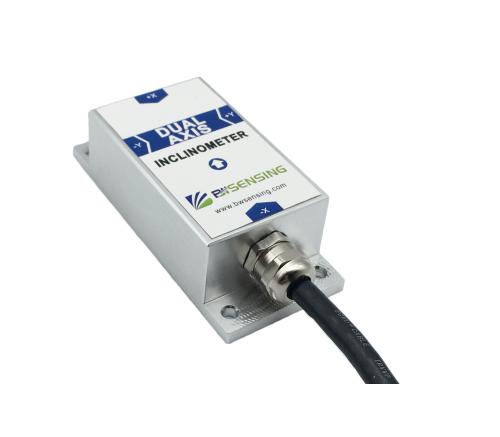

● Dual axis tilt measurement
● Resolution: 0.01°
● Power supply: 12-36V

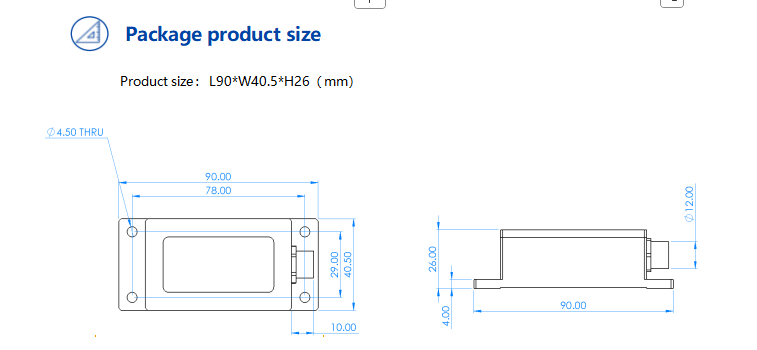

● Volume :L90*W40.5*H26(mm)
● Highest accuracy :0.1°
● Range :±90°
● Output :0-5V/ 0-10V for optional
● IP67 protection level
Electrical index
Parameter | Condition | Minimum | Typical value | Maximum |
Power voltage(V) | 12 | 36 | ||
Operating current(mA) | No load | 20 | 50 | 60 |
Output load(kΩ) | Resistive | 10 | ||
Output load(nF) | Capacitive | 20 | ||
Operating temperature(℃) | -40 | 85 | ||
Storage temperature(℃) | -55 | 100 |
Performance Index
Measurement Range (°) | Condition | ±90 |
Measurement axis | X-Y | |
Accuracy (°) | Room temperature | 0.1 |
Resolution (°) | Completely still | 0.01 |
Cross axis error(°) | -40 ~85℃ | 0.2 |
Start- up time | <3s | |
Output frequency (Hz) | 100 | |
Zero current output(V) | 2.5(0~5 output); 5(0~10 output) | |
Full-scale output current range(V) | 0~5(0~10) | |
Mean time between failures MTBF | ≥90000 h/times | |
Electromagnetic | According to GBT17626 | |
Insulation resistance | ≥100 MΩ | |
Impact resistance | 2000g ,0.5ms , 3 times/axis | |
Weight (g) | 230(without outer packaging) |
