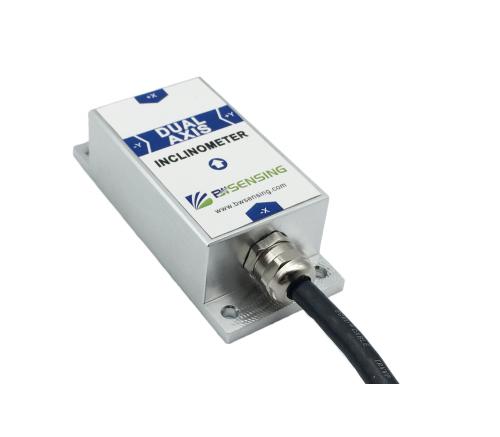

● Dual axis tilt measurement
● Resolution: 0.01°
● Power supply:12-36V

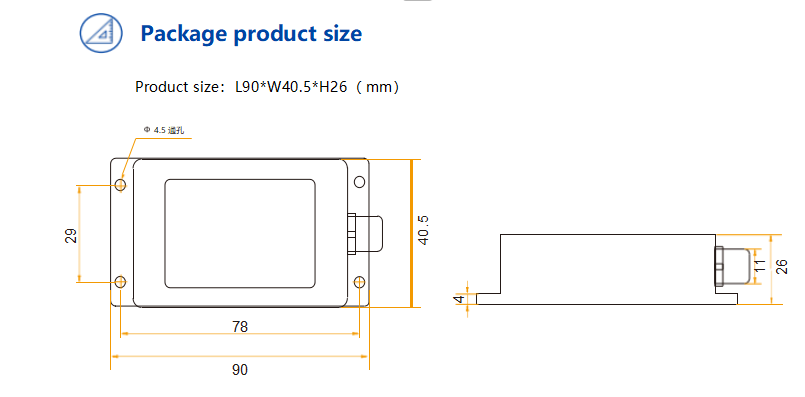

● Volume: L90*W40.5*H26(mm)
● Highest accuracy :0.1°
● Range :±90°
● Output :4-20mA/0-20mA/0-24mA optional
● IP67 protection level
Electrical index
Parameter | Condition | Minimum | Typical value | Maximum | ||
Power voltage(V) | 12 | 36 | ||||
Operating current(mA) | No load | 20 | 50 | 60 | ||
Output load (Ω) | Max | 500 | ||||
Operating temperature (℃) | -40 | 85 | ||||
Storage temperature (℃) | -55 | 100 |
Performance Index
Measurement Range (°) | Condition | ±90 |
Measurement axis | Mutually perpendicular | X-Y |
Accuracy (°) | Room temperature | 0.1 |
Resolution (°) | Completely still | 0.01 |
Zero bias (°/℃) | -40~85℃ | ±0.01 |
Start- up time | <3s | |
Output frequency (Hz) | 100 | |
Zero current output (V) | 10(0-20); 12(4-20); 12(0-24) | |
Full-scale output current | 4-20 (0-20 optional) (0-24 optional) | |
Mean time between failures MTBF | ≥90000 h/times | |
Electromagnetic compatibility | According to GBT17626 | |
Insulation resistance | ≥100 MΩ | |
Impact resistance | 2000g ,0.5ms,3 times/axis | |
Weight (g) | 230(without outer packaging) |
